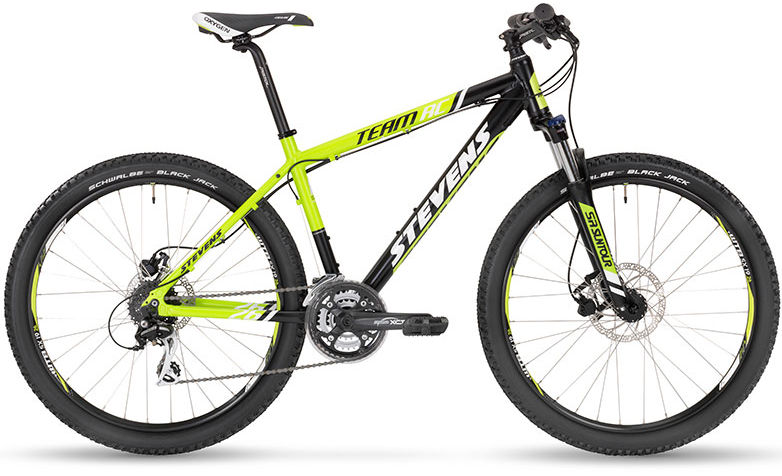

2015 Stevens Team RC Disc 26 geometry
Full frame geometry for the 2015 Stevens Team RC Disc 26, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 534 | 383 | 73 | 69.5 | 105 | 548 | 356 | 659 | 40 | 614 | 425 | 1036 | 42 |
| 19 | 573 | 399 | 73 | 70.5 | 140 | 575 | 483 | 739 | 40 | 634 | 425 | 1057 | 42 |
| 17 | 579 | 398 | 73 | 70.5 | 120 | 568 | 432 | 714 | 40 | 625 | 425 | 1047 | 42 |
All measurements in millimetres unless marked (°) for angles.
