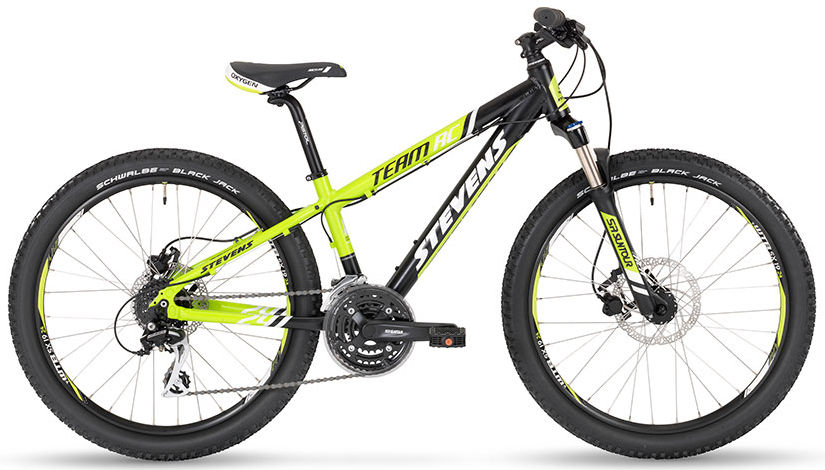

2015 Stevens Team RC Disc 24 geometry
Full frame geometry for the 2015 Stevens Team RC Disc 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 507 | 343 | 72 | 69 | 105 | 507 | 322 | 599 | 51 | 565 | 410 | 970 | 42 |
All measurements in millimetres unless marked (°) for angles.
