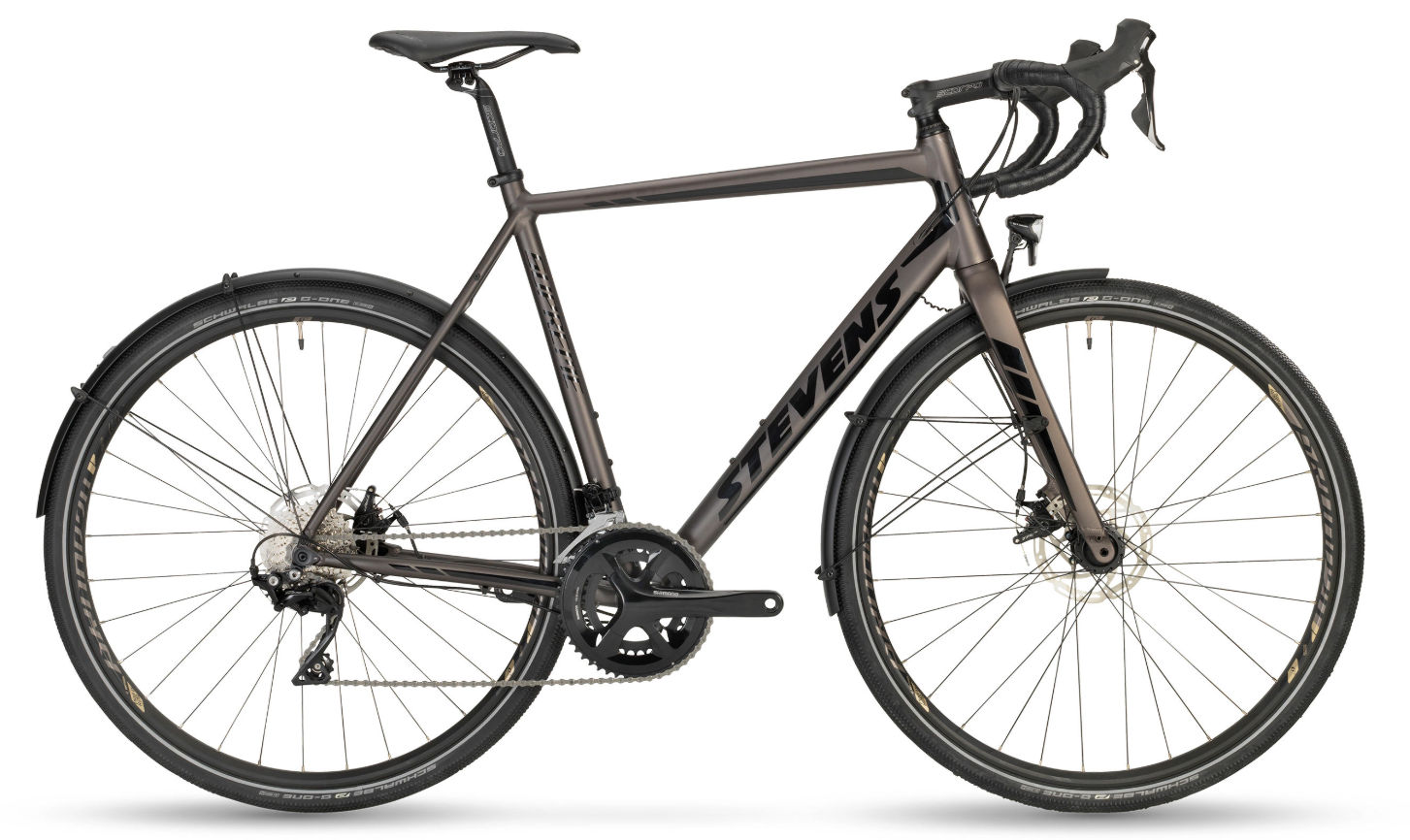

2019 Stevens Supreme Disc MK II geometry
Full frame geometry for the 2019 Stevens Supreme Disc MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 532 | 371 | 75.5 | 70.5 | 115 | 508 | 500 | 764 | 62 | 430 | 1010 | 45 |
| 52 | 544 | 378 | 74.5 | 70 | 130 | 528 | 520 | 779 | 62 | 430 | 1027 | 45 |
| 54 | 563 | 379 | 74 | 70.5 | 145 | 541 | 540 | 795 | 65 | 430 | 1029 | 45 |
| 56 | 584 | 381 | 73.5 | 71 | 160 | 554 | 560 | 809 | 70 | 430 | 1030 | 45 |
| 58 | 601 | 391 | 73 | 71.5 | 175 | 575 | 580 | 826 | 70 | 430 | 1040 | 45 |
| 60 | 615 | 403 | 73 | 71.5 | 190 | 591 | 600 | 843 | 70 | 430 | 1057 | 45 |
| 62 | 629 | 411 | 73 | 71.5 | 205 | 603 | 620 | 860 | 70 | 430 | 1069 | 45 |
All measurements in millimetres unless marked (°) for angles.
