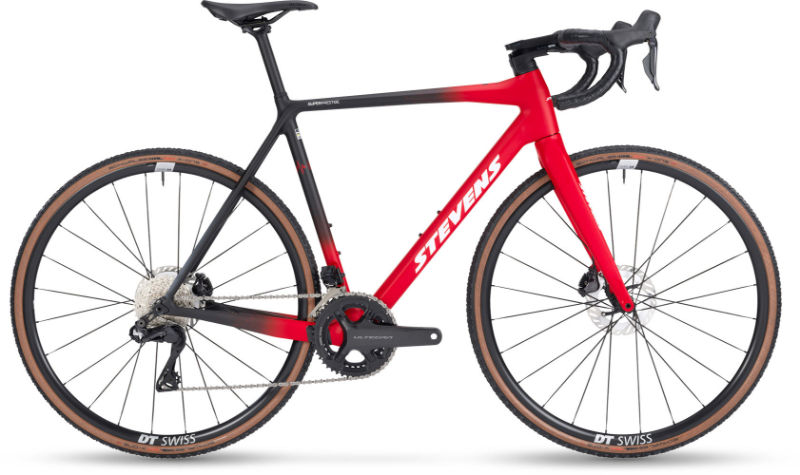

2026 Stevens Super Prestige geometry
Full frame geometry for the 2026 Stevens Super Prestige, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 519 | 375 | 75.5 | 70.5 | 100 | 509 | 485 | 764 | 62 | 588 | 425 | 1005 | 45 |
| 52 | 531 | 383 | 74.5 | 71 | 110 | 530 | 504 | 775 | 62 | 595 | 425 | 1012 | 45 |
| 54 | 559 | 379 | 74 | 71.5 | 135 | 539 | 525 | 800 | 65 | 595 | 425 | 1012 | 45 |
| 56 | 570 | 379 | 73 | 72 | 145 | 553 | 545 | 814 | 65 | 594 | 425 | 1011 | 45 |
| 58 | 589 | 392 | 73 | 72 | 159 | 572 | 559 | 828 | 70 | 612 | 425 | 1027 | 45 |
| 60 | 613 | 398 | 73 | 72 | 185 | 586 | 584 | 849 | 70 | 626 | 425 | 1041 | 45 |
All measurements in millimetres unless marked (°) for angles.
