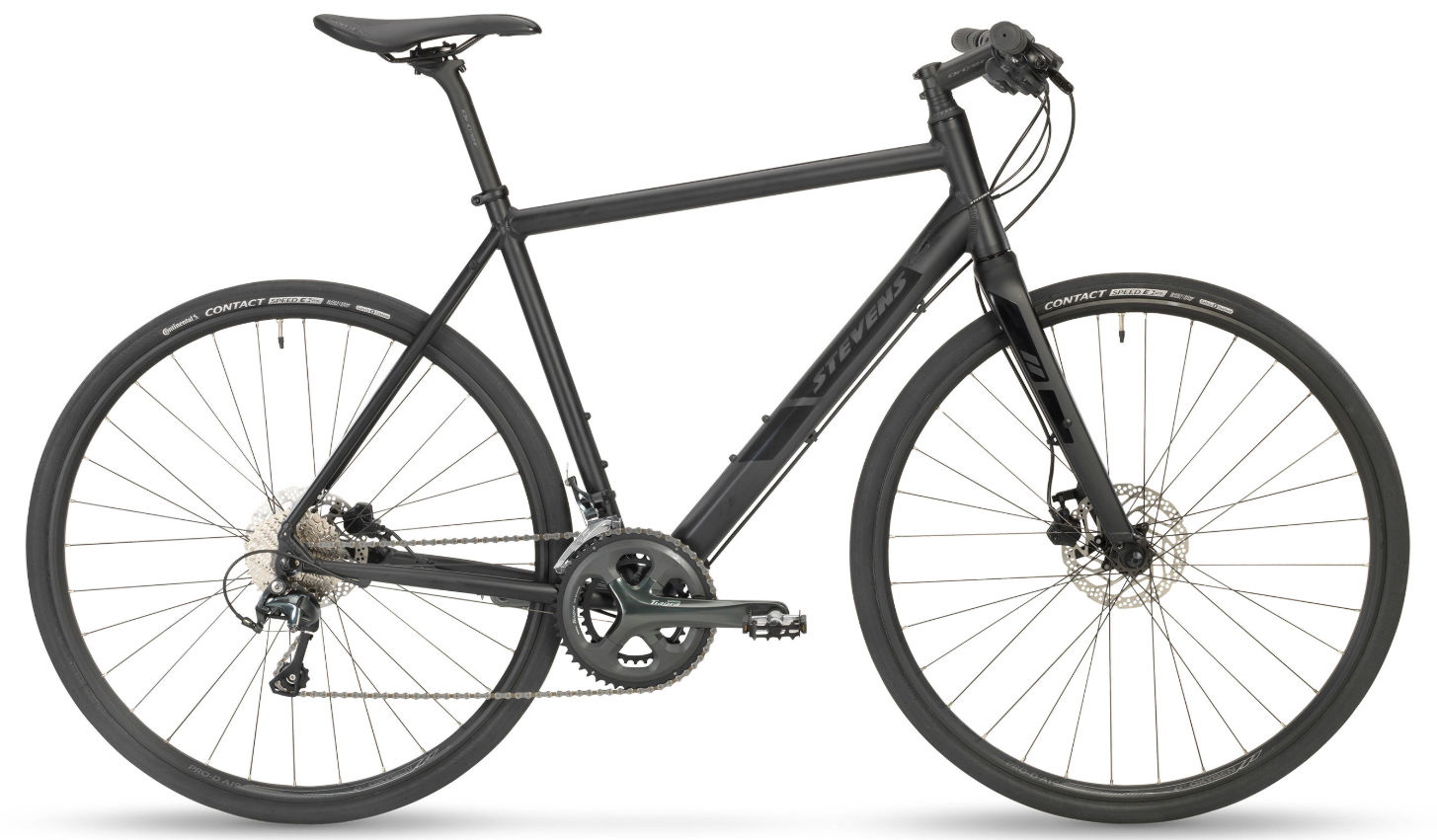

2019 Stevens Strada MKII geometry
Full frame geometry for the 2019 Stevens Strada MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 545 | 388 | 73.5 | 70 | 128 | 550 | 480 | 753 | 65 | 615 | 430 | 1036 | 45 |
| 52 | 572 | 389 | 72.5 | 71 | 152 | 569 | 520 | 787 | 65 | 614 | 430 | 1036 | 45 |
| 55 | 596 | 395 | 72.5 | 72 | 173 | 583 | 550 | 810 | 65 | 618 | 430 | 1040 | 45 |
| 58 | 619 | 386 | 72.5 | 72 | 198 | 581 | 580 | 839 | 65 | 629 | 430 | 1051 | 45 |
| 61 | 648 | 394 | 72 | 72 | 228 | 605 | 610 | 868 | 65 | 634 | 430 | 1055 | 45 |
All measurements in millimetres unless marked (°) for angles.
