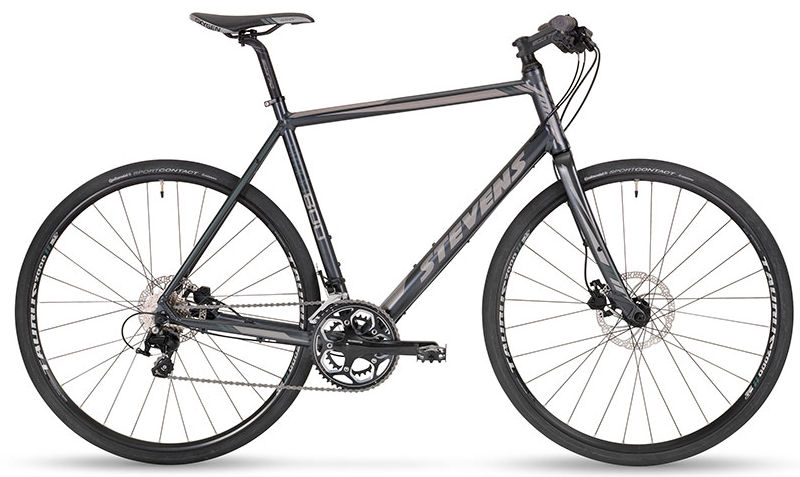

2015 Stevens Strada Disc MKI geometry
Full frame geometry for the 2015 Stevens Strada Disc MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 539 | 392 | 73.5 | 70.5 | 115 | 552 | 475 | 735 | 65 | 611 | 430 | 1033 | 45 |
| 52 | 568 | 394 | 72.5 | 70.8 | 145 | 573 | 510 | 769 | 65 | 620 | 430 | 1042 | 45 |
| 55 | 583 | 402 | 72.5 | 70.8 | 160 | 583 | 545 | 796 | 65 | 631 | 430 | 1052 | 45 |
| 58 | 611 | 402 | 72.5 | 70.8 | 190 | 594 | 575 | 825 | 65 | 642 | 430 | 1064 | 45 |
| 61 | 639 | 396 | 72 | 70.8 | 220 | 604 | 605 | 852 | 65 | 647 | 430 | 1069 | 45 |
All measurements in millimetres unless marked (°) for angles.
