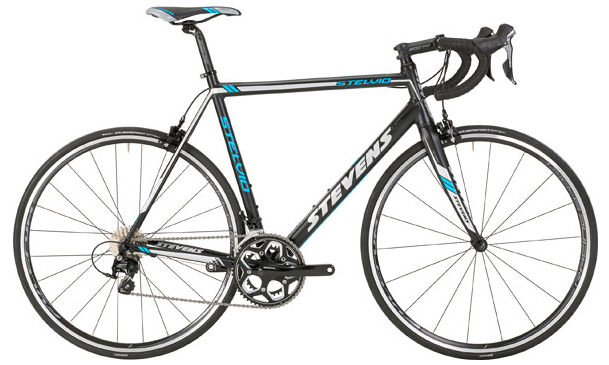

2015 Stevens Stelvio MK I geometry

Name: 2015 Stevens Stelvio MK I
Brand: Stevens

Full frame geometry for the 2015 Stevens Stelvio MK I, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
50	507	377	74.3	71.5	106	521	490	722	70	575	410	975	45
52	524	381	74	72.5	121	530	505	735	70	576	410	975	45
54	545	385	74	73	141	531	530	758	70	582	410	982	45
56	561	394	74	73.5	156	548	560	783	70	591	410	990	45
58	580	398	73.5	73.5	176	566	590	809	70	600	410	1000	45
60	604	391	73.5	73.5	201	577	615	832	70	612	410	1011	45
62	618	404	73.5	73.5	216	584	630	848	70	618	410	1018	45

All measurements in millimetres unless marked (°) for angles.
