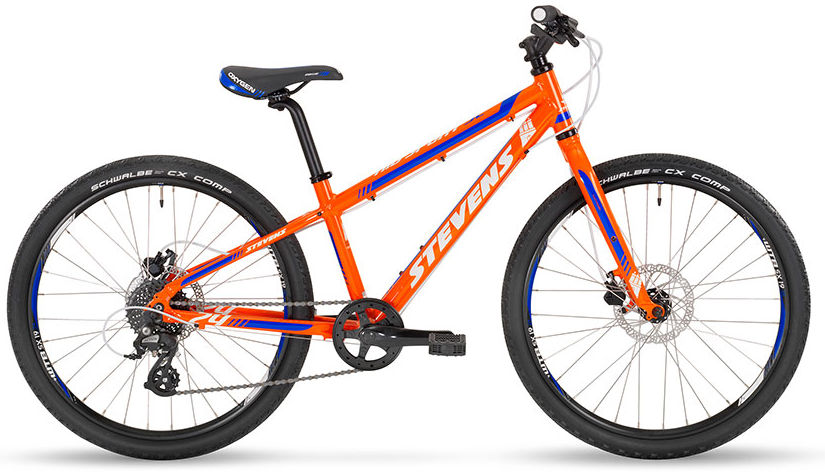

2015 Stevens Sport SL 24 geometry
Full frame geometry for the 2015 Stevens Sport SL 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12.5 | 501 | 344 | 72.5 | 69 | 120 | 502 | 319 | 595 | 51 | 568 | 410 | 972 | 45 |
All measurements in millimetres unless marked (°) for angles.
