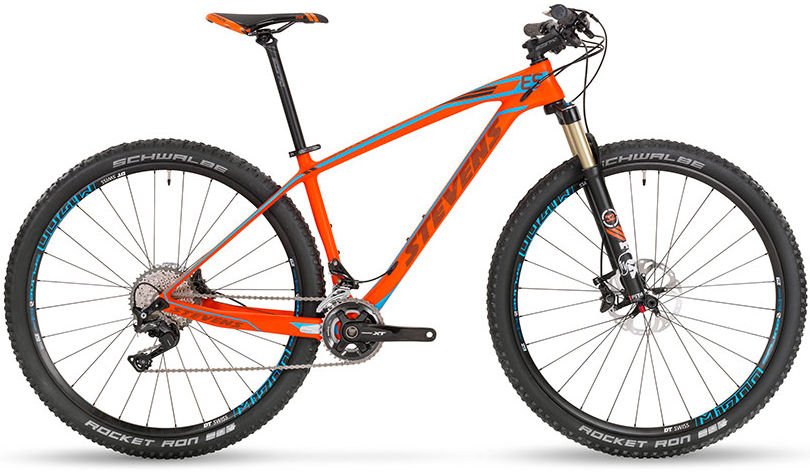

2016 Stevens Sonora MK II geometry
Full frame geometry for the 2016 Stevens Sonora MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 583 | 433 | 74.5 | 69 | 95 | 595 | 376 | 714 | 53 | 686 | 425 | 1106 | 44 |
| 18 | 605 | 432 | 74.5 | 70 | 95 | 600 | 427 | 755 | 70 | 676 | 435 | 1108 | 43 |
| 20 | 619 | 448 | 74.5 | 70 | 110 | 620 | 478 | 787 | 70 | 697 | 435 | 1123 | 43 |
| 22 | 628 | 466 | 74.5 | 70 | 120 | 640 | 510 | 811 | 70 | 718 | 435 | 1144 | 43 |
All measurements in millimetres unless marked (°) for angles.
