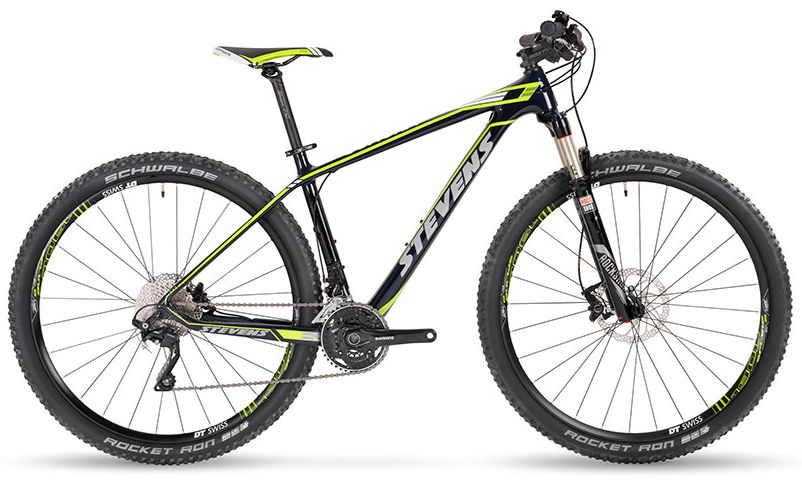

2016 Stevens Sonora MK I geometry
Full frame geometry for the 2016 Stevens Sonora MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 | 595 | 429 | 74 | 72 | 95 | 600 | 457 | 757 | 70 | 650 | 445 | 1086 | 43 |
| 16 | 607 | 417 | 74 | 71.5 | 95 | 590 | 406 | 716 | 70 | 648 | 445 | 1083 | 46 |
| 20 | 624 | 441 | 74 | 72 | 110 | 620 | 508 | 798 | 70 | 671 | 445 | 1107 | 43 |
| 22 | 628 | 460 | 74 | 72 | 120 | 640 | 540 | 822 | 70 | 691 | 445 | 1127 | 43 |
All measurements in millimetres unless marked (°) for angles.
