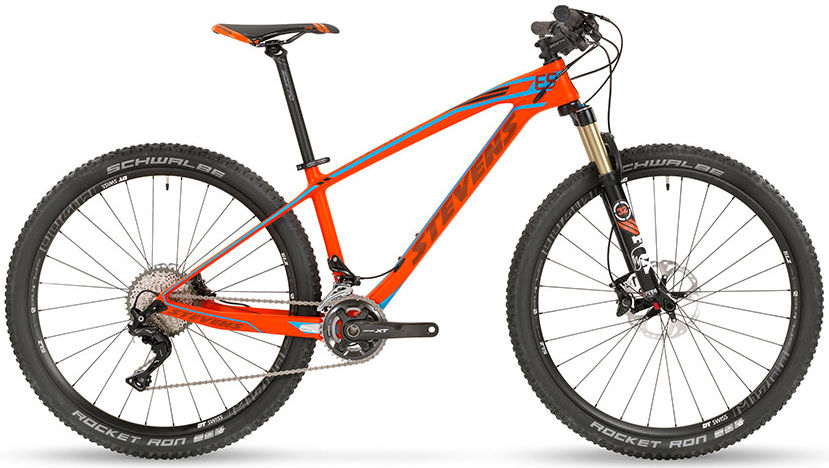

2016 Stevens Sonora 27.5 geometry
Full frame geometry for the 2016 Stevens Sonora 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 | 578 | 444 | 74.5 | 69 | 95 | 605 | 427 | 747 | 48 | 697 | 425 | 1117 | 44 |
| 20 | 592 | 461 | 74.5 | 69 | 110 | 625 | 478 | 784 | 48 | 718 | 425 | 1139 | 44 |
All measurements in millimetres unless marked (°) for angles.
