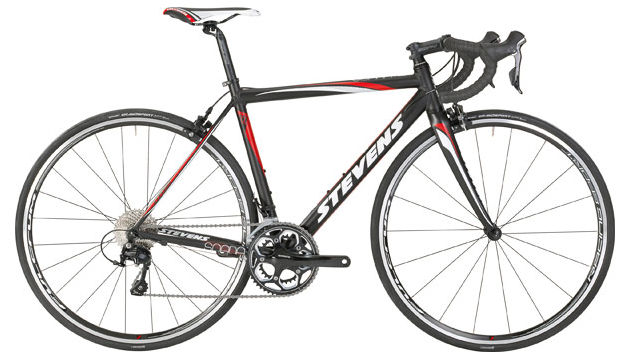

2015 Stevens Soana Pro geometry
Full frame geometry for the 2015 Stevens Soana Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 492 | 371 | 76 | 70.5 | 95 | 496 | 440 | 689 | 70 | 573 | 410 | 973 | 45 |
| S | 509 | 371 | 75 | 71 | 111 | 512 | 470 | 712 | 70 | 574 | 410 | 974 | 45 |
| M | 525 | 381 | 74 | 72 | 126 | 530 | 510 | 741 | 70 | 584 | 410 | 983 | 45 |
| L | 542 | 380 | 73.5 | 72.5 | 141 | 542 | 540 | 767 | 70 | 581 | 410 | 981 | 45 |
All measurements in millimetres unless marked (°) for angles.
