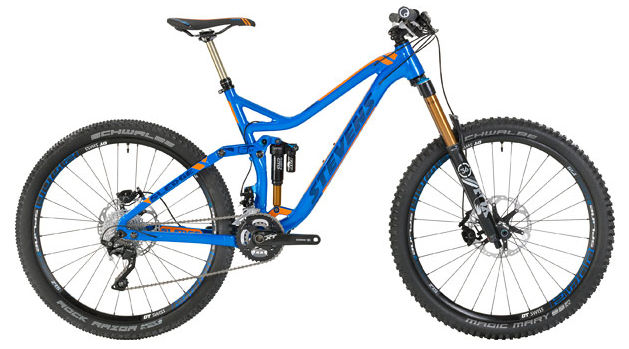

2015 Stevens Sledge ES geometry
Full frame geometry for the 2015 Stevens Sledge ES, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 603 | 412 | 75.4 | 66 | 110 | 565 | 420 | 726 | 12 | 724 | 430 | 1154 | 44 |
| 18 | 603 | 431 | 74.6 | 66 | 110 | 585 | 450 | 736 | 12 | 744 | 430 | 1174 | 44 |
| 20 | 603 | 452 | 74.3 | 66 | 110 | 605 | 480 | 741 | 12 | 764 | 430 | 1194 | 44 |
| 22 | 622 | 465 | 74 | 66 | 130 | 625 | 510 | 744 | 12 | 785 | 430 | 1215 | 44 |
All measurements in millimetres unless marked (°) for angles.
