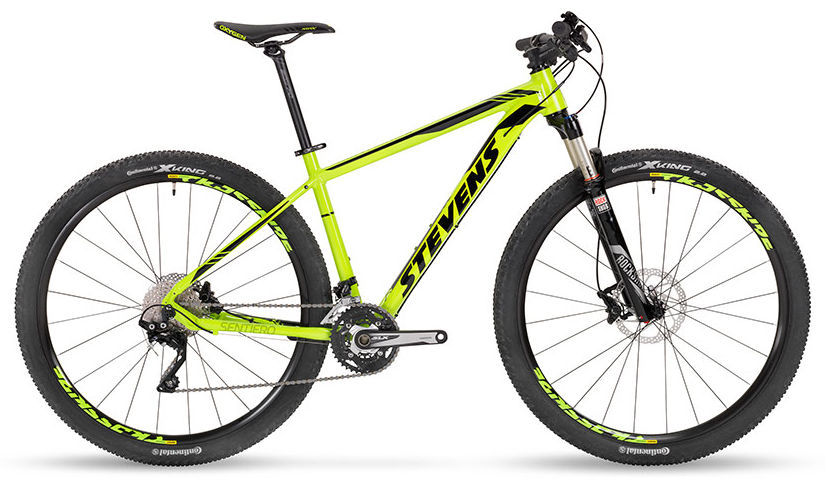

2015 Stevens Sentiero MK I geometry
Full frame geometry for the 2015 Stevens Sentiero MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 555 | 403 | 74 | 69 | 90 | 565 | 360 | 684 | 50 | 644 | 435 | 1074 | 42 |
| 16 | 560 | 437 | 74.5 | 69 | 95 | 595 | 406 | 714 | 50 | 679 | 435 | 1110 | 42 |
| 18 | 605 | 420 | 74 | 70 | 100 | 595 | 457 | 764 | 70 | 667 | 450 | 1107 | 46 |
| 20 | 614 | 437 | 74 | 70 | 110 | 615 | 508 | 800 | 70 | 687 | 450 | 1128 | 46 |
| 22 | 628 | 452 | 74 | 70 | 125 | 635 | 558 | 834 | 70 | 708 | 450 | 1149 | 46 |
| 24 | 657 | 459 | 74 | 70 | 155 | 650 | 609 | 874 | 70 | 725 | 450 | 1166 | 46 |
All measurements in millimetres unless marked (°) for angles.
