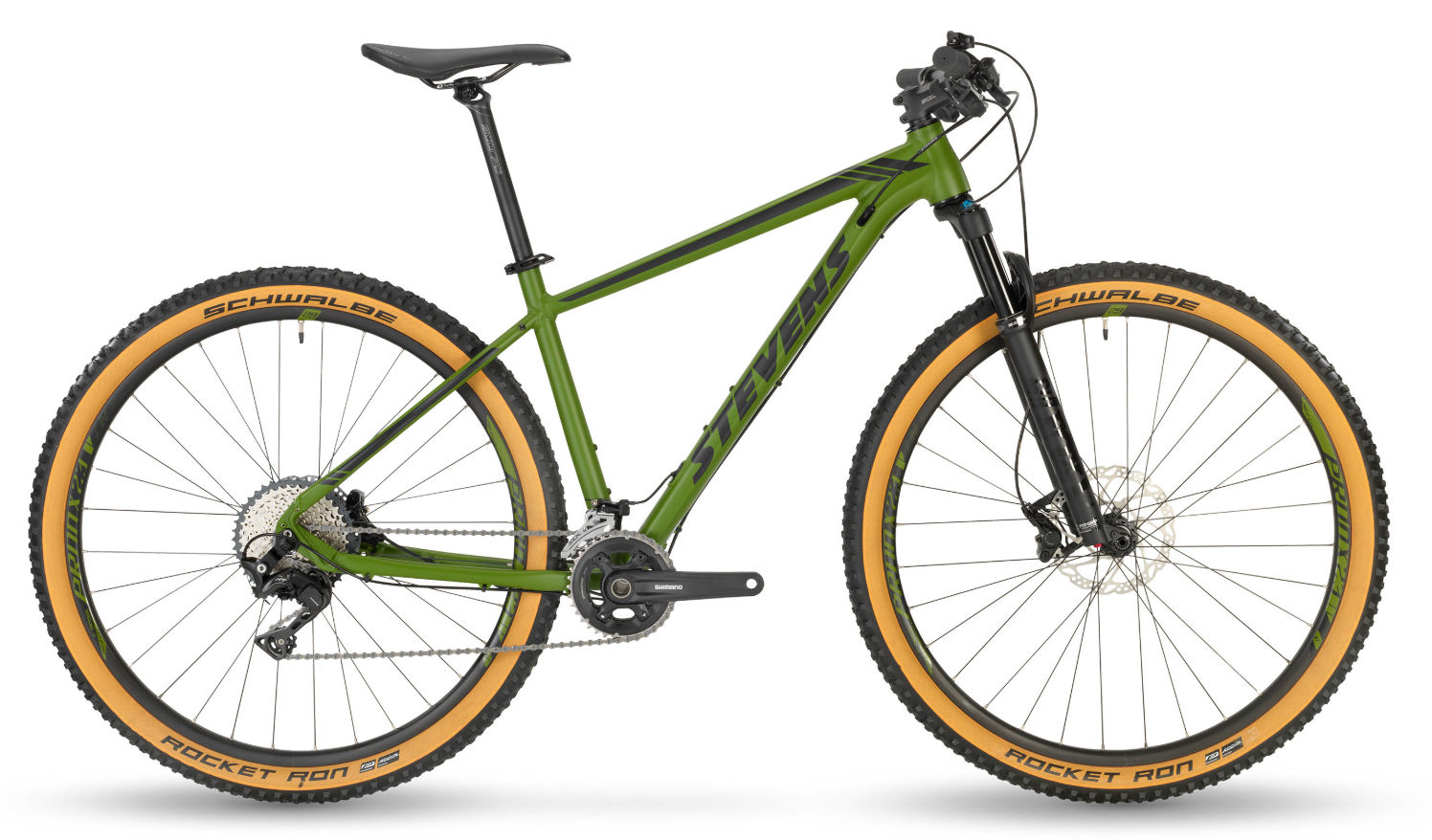

2019 Stevens Senterio MK II geometry
Full frame geometry for the 2019 Stevens Senterio MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 559 | 435 | 74.5 | 69 | 95 | 595 | 406 | 718 | 50 | 435 | 1108 | 42 |
| 18 | 605 | 418 | 74 | 70 | 100 | 595 | 457 | 755 | 70 | 450 | 1107 | 46 |
| 20 | 614 | 435 | 74 | 70 | 110 | 615 | 508 | 790 | 70 | 450 | 1128 | 46 |
| 22 | 628 | 451 | 74 | 70 | 125 | 635 | 558 | 827 | 70 | 450 | 1149 | 46 |
All measurements in millimetres unless marked (°) for angles.
