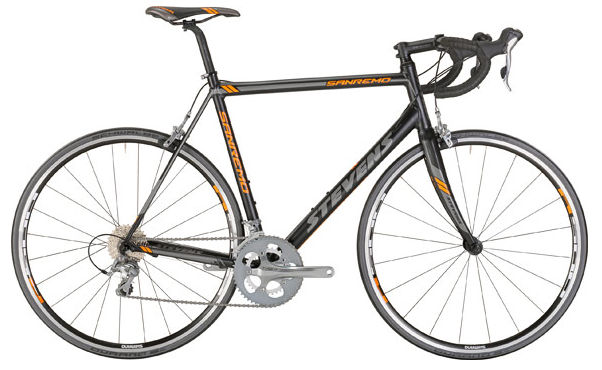

2015 Stevens San Remo MK I geometry
Full frame geometry for the 2015 Stevens San Remo MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 500 | 378 | 74 | 71.5 | 100 | 519 | 490 | 721 | 70 | 573 | 410 | 973 | 45 |
| 52 | 527 | 380 | 74 | 72.5 | 125 | 532 | 505 | 738 | 70 | 575 | 410 | 975 | 45 |
| 55 | 559 | 389 | 74 | 73.5 | 155 | 550 | 550 | 775 | 70 | 585 | 410 | 985 | 45 |
| 58 | 588 | 396 | 73.5 | 73.5 | 185 | 570 | 590 | 813 | 70 | 600 | 410 | 1000 | 45 |
| 61 | 618 | 397 | 73 | 74 | 215 | 585 | 620 | 842 | 70 | 605 | 410 | 1005 | 45 |
All measurements in millimetres unless marked (°) for angles.
