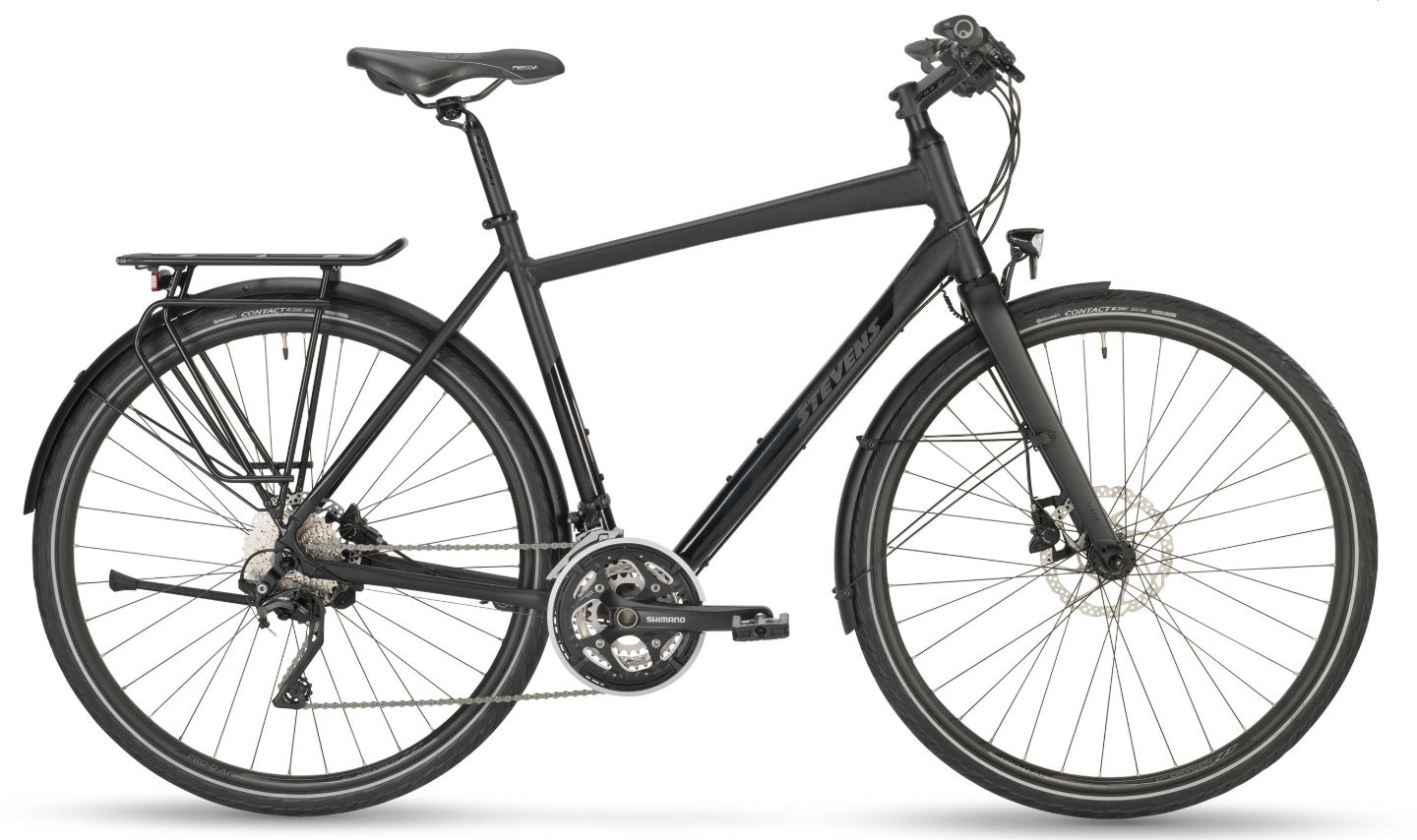

2019 Stevens Randonneur Disc geometry
Full frame geometry for the 2019 Stevens Randonneur Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 560 | 391 | 73.5 | 69.5 | 130 | 559 | 480 | 722 | 70 | 626 | 450 | 1067 | 45 |
| 52 | 590 | 387 | 72.5 | 70 | 160 | 574 | 520 | 757 | 70 | 628 | 450 | 1069 | 45 |
| 55 | 609 | 396 | 72.5 | 70 | 180 | 589 | 550 | 782 | 70 | 644 | 450 | 1084 | 45 |
| 58 | 632 | 404 | 72.5 | 71 | 200 | 604 | 580 | 809 | 70 | 649 | 450 | 1090 | 45 |
| 61 | 653 | 410 | 72.5 | 71.5 | 220 | 617 | 610 | 835 | 70 | 657 | 450 | 1097 | 45 |
| 64 | 663 | 420 | 72.5 | 71.5 | 230 | 630 | 640 | 857 | 70 | 669 | 450 | 1110 | 45 |
All measurements in millimetres unless marked (°) for angles.
