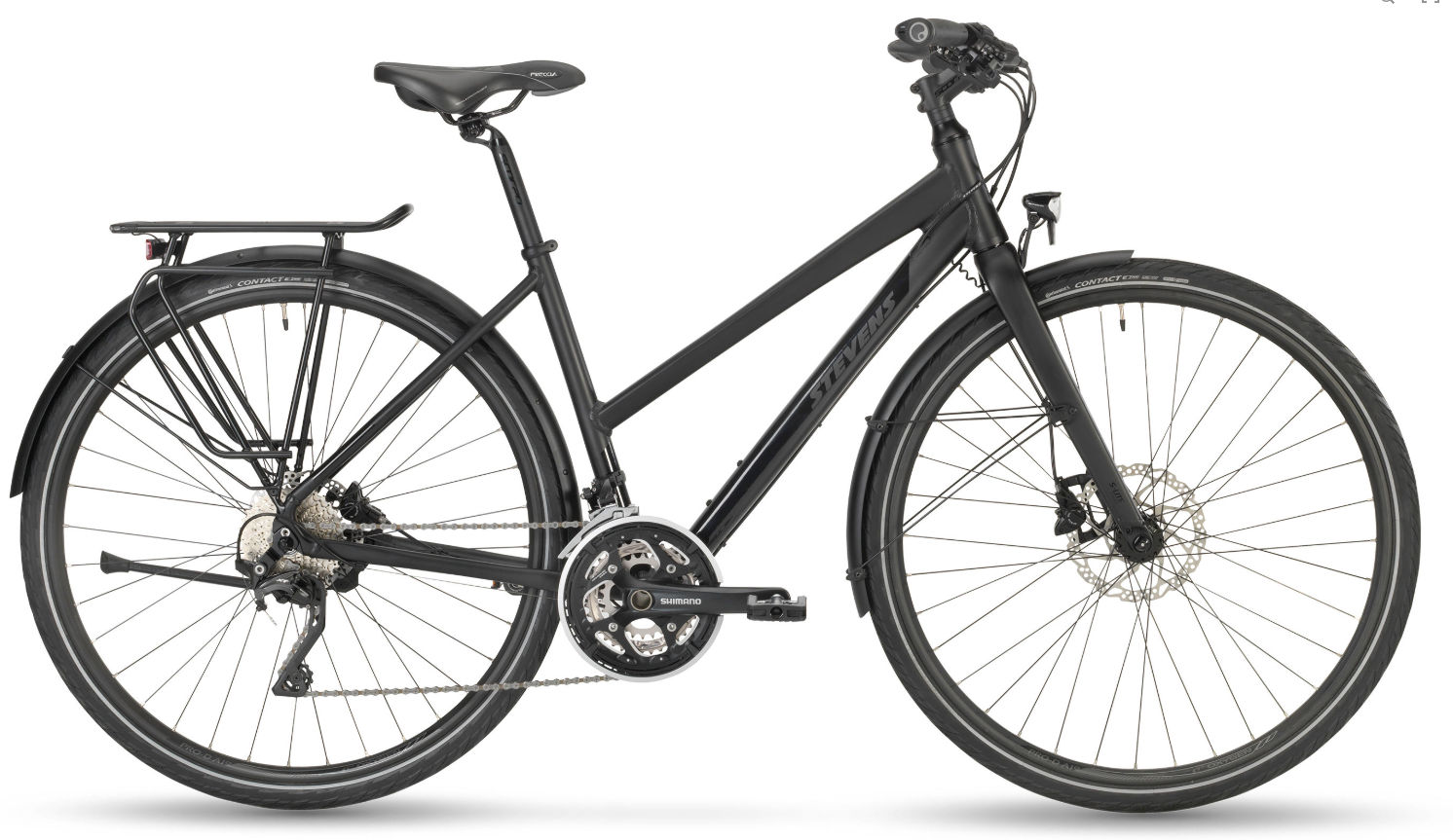

2019 Stevens Randonneur Disc Womens geometry
Full frame geometry for the 2019 Stevens Randonneur Disc Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 571 | 390 | 73 | 70 | 140 | 565 | 460 | 619 | 70 | 624 | 450 | 1065 | 45 |
| 50 | 609 | 390 | 73 | 70 | 180 | 576 | 500 | 632 | 70 | 638 | 450 | 1079 | 45 |
| 54 | 637 | 393 | 73 | 70 | 210 | 590 | 540 | 661 | 70 | 651 | 450 | 1092 | 45 |
| 58 | 653 | 393 | 72.5 | 71.5 | 220 | 600 | 580 | 666 | 70 | 640 | 450 | 1081 | 45 |
All measurements in millimetres unless marked (°) for angles.
