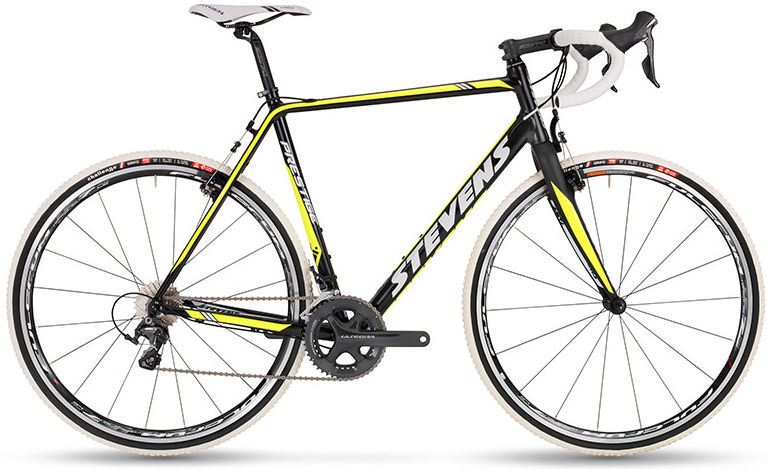

2015 Stevens Prestige MK I geometry
Full frame geometry for the 2015 Stevens Prestige MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 532 | 371 | 75.5 | 70.5 | 115 | 499 | 490 | 762 | 62 | 588 | 425 | 1006 | 45 |
| 52 | 548 | 375 | 74.5 | 71 | 130 | 527 | 520 | 786 | 62 | 593 | 425 | 1010 | 45 |
| 54 | 567 | 376 | 74 | 71.5 | 145 | 539 | 540 | 801 | 65 | 595 | 425 | 1011 | 45 |
| 56 | 588 | 372 | 73 | 72 | 160 | 551 | 560 | 814 | 70 | 592 | 425 | 1007 | 45 |
| 58 | 603 | 388 | 73 | 72 | 175 | 572 | 580 | 832 | 70 | 612 | 425 | 1027 | 45 |
| 60 | 617 | 399 | 73 | 72 | 190 | 588 | 600 | 847 | 70 | 628 | 425 | 1043 | 45 |
All measurements in millimetres unless marked (°) for angles.
