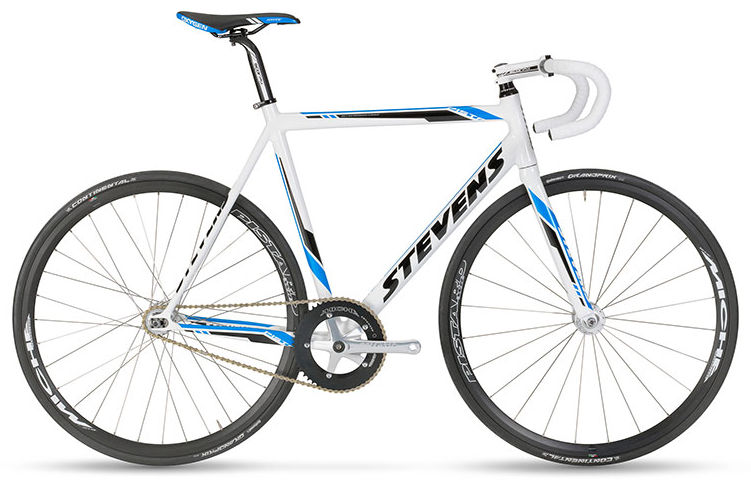

2015 Stevens Pista geometry
Full frame geometry for the 2015 Stevens Pista, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 519 | 378 | 74 | 73.5 | 130 | 525 | 530 | 769 | 55 | 560 | 395 | 949 | 40 |
| 54 | 537 | 384 | 74 | 74.5 | 145 | 535 | 550 | 787 | 55 | 561 | 395 | 950 | 40 |
| 56 | 558 | 390 | 74 | 75 | 165 | 550 | 570 | 807 | 55 | 567 | 395 | 957 | 40 |
| 58 | 572 | 401 | 74 | 75 | 180 | 565 | 590 | 825 | 55 | 584 | 395 | 973 | 40 |
| 60 | 591 | 401 | 74 | 75 | 200 | 576 | 610 | 843 | 55 | 588 | 395 | 977 | 40 |
| 62 | 611 | 410 | 73.5 | 75 | 220 | 590 | 616 | 861 | 55 | 603 | 395 | 991 | 40 |
All measurements in millimetres unless marked (°) for angles.
