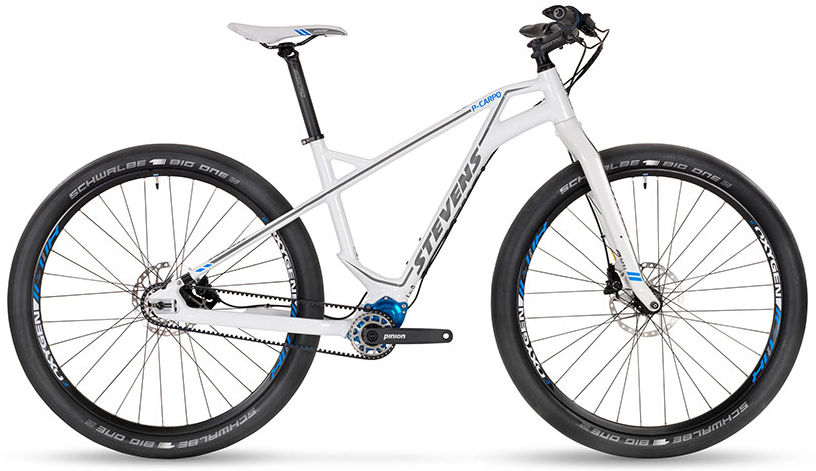

2015 Stevens P-Carpo geometry
Full frame geometry for the 2015 Stevens P-Carpo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17 | 607 | 385 | 73.5 | 70.5 | 115 | 565 | 431 | 742 | 70 | 625 | 495 | 1111 | 43 |
| 19 | 617 | 407 | 73.5 | 70.5 | 125 | 590 | 482 | 745 | 70 | 650 | 495 | 1137 | 43 |
| 21 | 640 | 420 | 73.5 | 70.5 | 150 | 610 | 533 | 754 | 70 | 672 | 495 | 1158 | 43 |
All measurements in millimetres unless marked (°) for angles.
