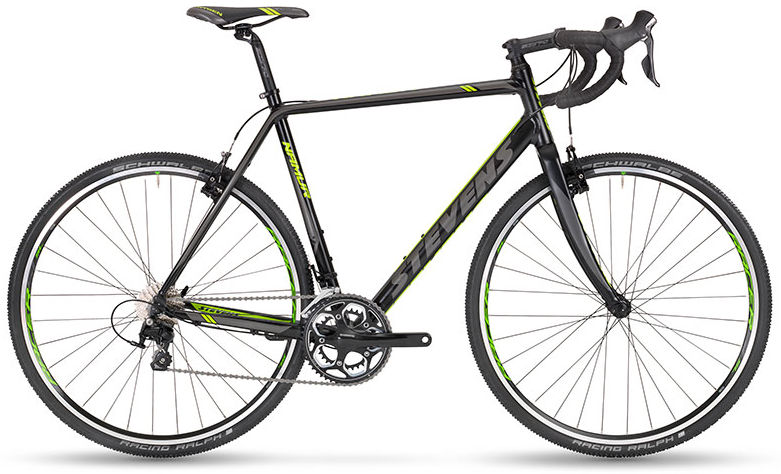

2015 Stevens Namur geometry
Full frame geometry for the 2015 Stevens Namur, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 516 | 361 | 76.5 | 70 | 100 | 485 | 480 | 746 | 62 | 578 | 425 | 995 | 45 |
| 50 | 532 | 371 | 75.5 | 70.5 | 115 | 512 | 490 | 762 | 62 | 588 | 425 | 1006 | 45 |
| 52 | 544 | 378 | 74.5 | 70 | 130 | 529 | 520 | 777 | 62 | 605 | 425 | 1022 | 45 |
| 54 | 563 | 379 | 74 | 70.5 | 145 | 540 | 540 | 792 | 65 | 607 | 425 | 1024 | 45 |
| 56 | 584 | 381 | 73.5 | 71 | 160 | 552 | 560 | 806 | 70 | 609 | 425 | 1025 | 45 |
| 58 | 601 | 391 | 73 | 71.5 | 175 | 575 | 580 | 823 | 70 | 620 | 425 | 1035 | 45 |
| 60 | 615 | 403 | 73 | 71.5 | 190 | 591 | 600 | 841 | 70 | 637 | 425 | 1052 | 45 |
| 62 | 629 | 411 | 73 | 71.5 | 205 | 603 | 620 | 858 | 70 | 649 | 425 | 1064 | 45 |
All measurements in millimetres unless marked (°) for angles.
