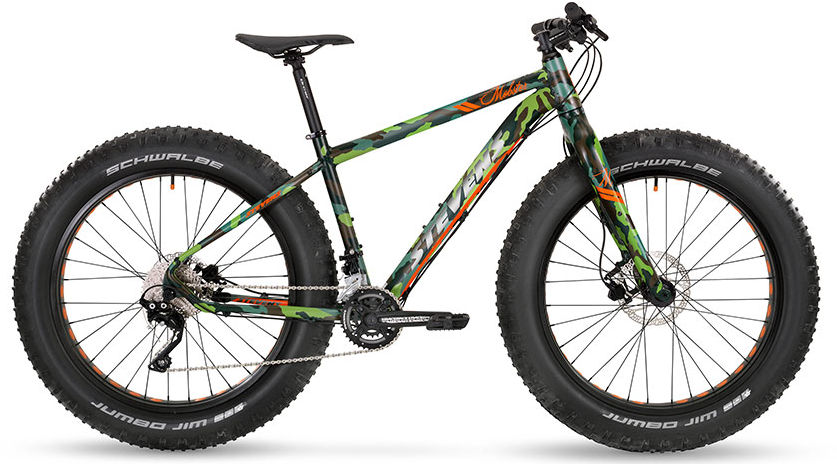

2015 Stevens Mobster geometry
Full frame geometry for the 2015 Stevens Mobster, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 588 | 396 | 73 | 70 | 110 | 576 | 394 | 729 | 60 | 639 | 465 | 1097 | 45 |
| 18 | 602 | 419 | 73 | 70 | 125 | 603 | 445 | 766 | 60 | 667 | 465 | 1125 | 45 |
| 20 | 615 | 437 | 73 | 70 | 140 | 625 | 483 | 795 | 60 | 690 | 465 | 1148 | 45 |
| 22 | 630 | 447 | 73 | 70 | 155 | 640 | 540 | 836 | 60 | 705 | 465 | 1164 | 45 |
All measurements in millimetres unless marked (°) for angles.
