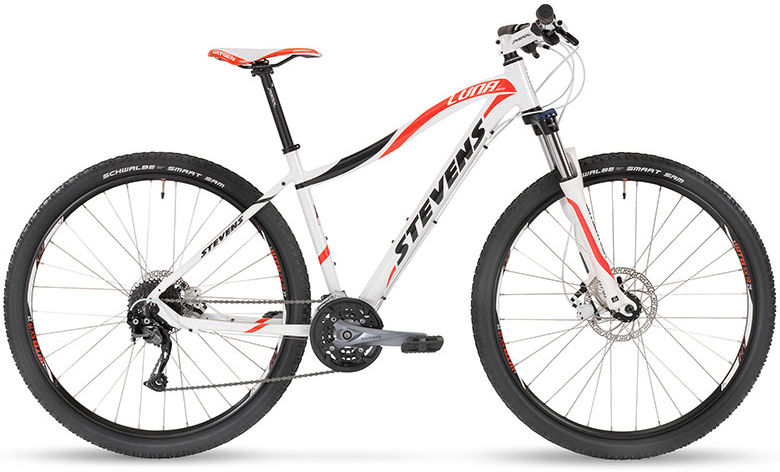

2015 Stevens Luna MK I geometry
Full frame geometry for the 2015 Stevens Luna MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 565 | 408 | 74.5 | 69 | 95 | 565 | 360 | 679 | 50 | 653 | 435 | 1083 | 42 |
| 16 | 575 | 435 | 74.5 | 69 | 105 | 595 | 406 | 712 | 50 | 684 | 435 | 1114 | 42 |
| 18 | 626 | 413 | 74 | 70 | 115 | 595 | 457 | 748 | 70 | 668 | 455 | 1114 | 46 |
All measurements in millimetres unless marked (°) for angles.
