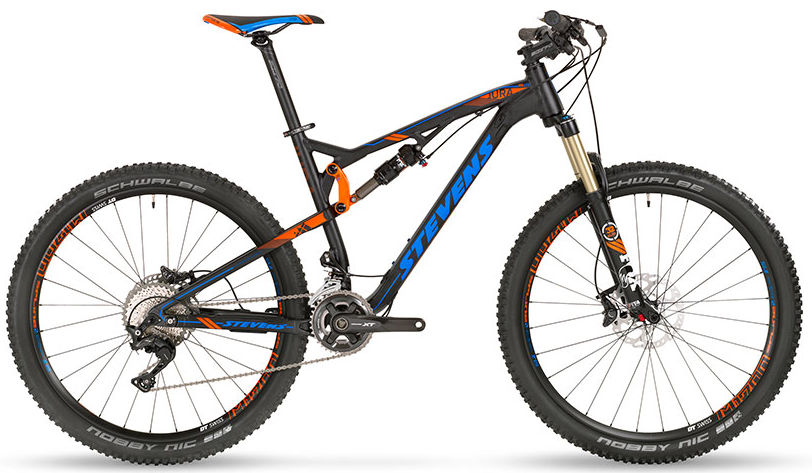

2016 Stevens Jura ES 27.5 geometry
Full frame geometry for the 2016 Stevens Jura ES 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 569 | 424 | 74 | 68.5 | 100 | 580 | 430 | 761 | 18 | 690 | 430 | 1119 | 44 |
| 18 | 579 | 441 | 73.8 | 68.5 | 110 | 600 | 455 | 769 | 18 | 708 | 430 | 1139 | 44 |
| 20 | 608 | 450 | 73.6 | 68.5 | 140 | 620 | 500 | 774 | 18 | 732 | 430 | 1160 | 44 |
All measurements in millimetres unless marked (°) for angles.
