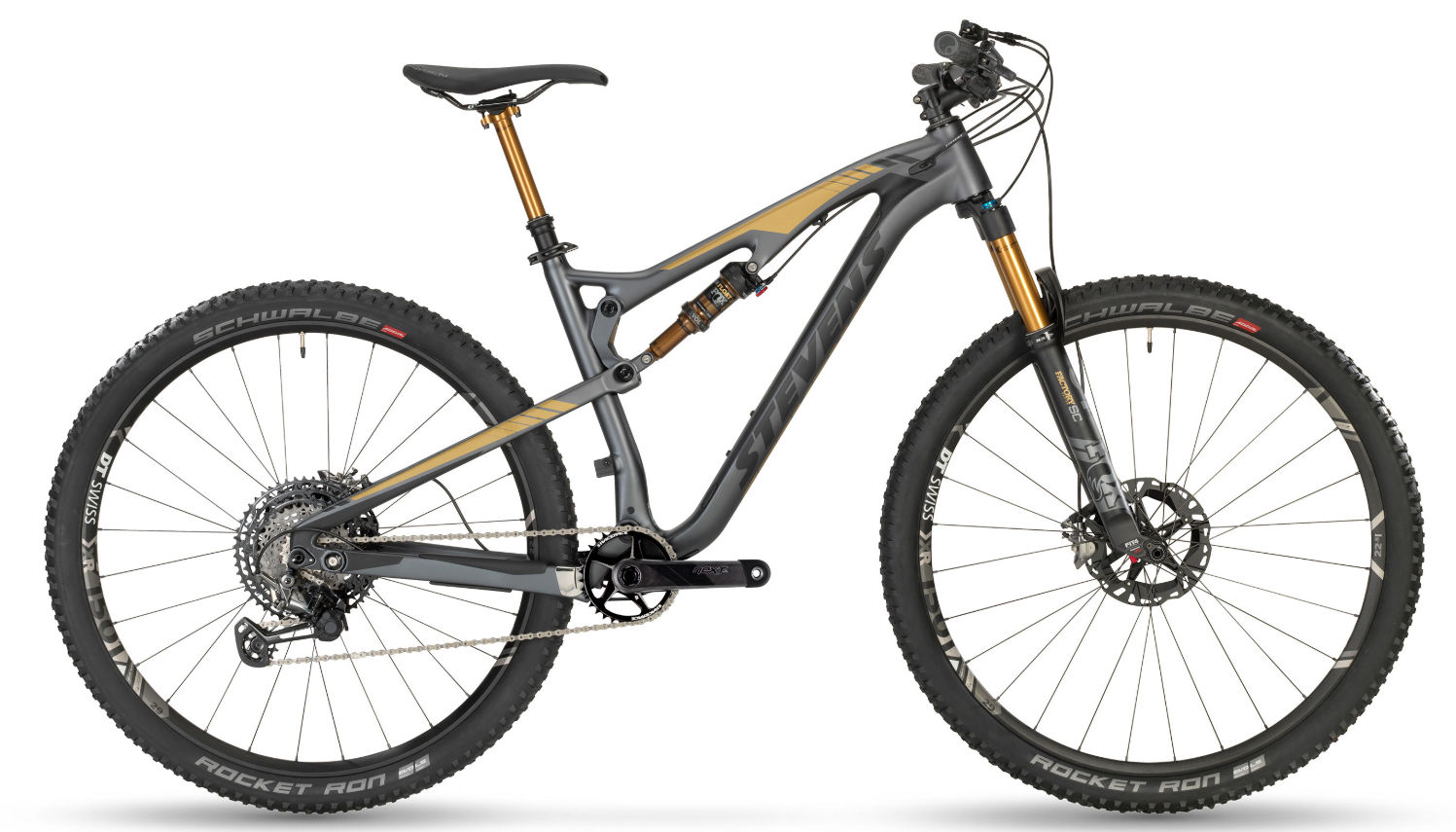

2019 Stevens Jura Carbon geometry
Full frame geometry for the 2019 Stevens Jura Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 569 | 422 | 74.5 | 68.8 | 100 | 569 | 430 | 757 | 18 | 430 | 1116 | 44 |
| 18 | 596 | 433 | 74.5 | 68.8 | 100 | 585 | 455 | 768 | 35 | 445 | 1152 | 51 |
| 20 | 605 | 450 | 74.5 | 68.8 | 110 | 610 | 500 | 767 | 35 | 445 | 1173 | 51 |
| 22 | 624 | 463 | 74.5 | 68.8 | 130 | 630 | 530 | 766 | 35 | 445 | 1194 | 51 |
All measurements in millimetres unless marked (°) for angles.
