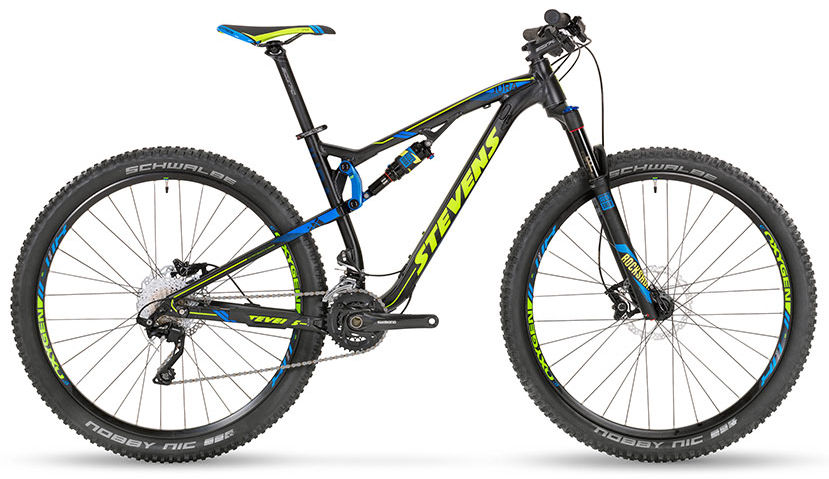

2016 Stevens Jura 29 geometry
Full frame geometry for the 2016 Stevens Jura 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 | 595 | 435 | 73.8 | 68.5 | 100 | 600 | 455 | 773 | 35 | 712 | 445 | 1155 | 51 |
| 20 | 605 | 452 | 73.6 | 68.5 | 110 | 620 | 500 | 778 | 35 | 732 | 445 | 1175 | 51 |
| 22 | 634 | 462 | 73.4 | 68.5 | 140 | 640 | 530 | 780 | 35 | 753 | 445 | 1196 | 51 |
All measurements in millimetres unless marked (°) for angles.
