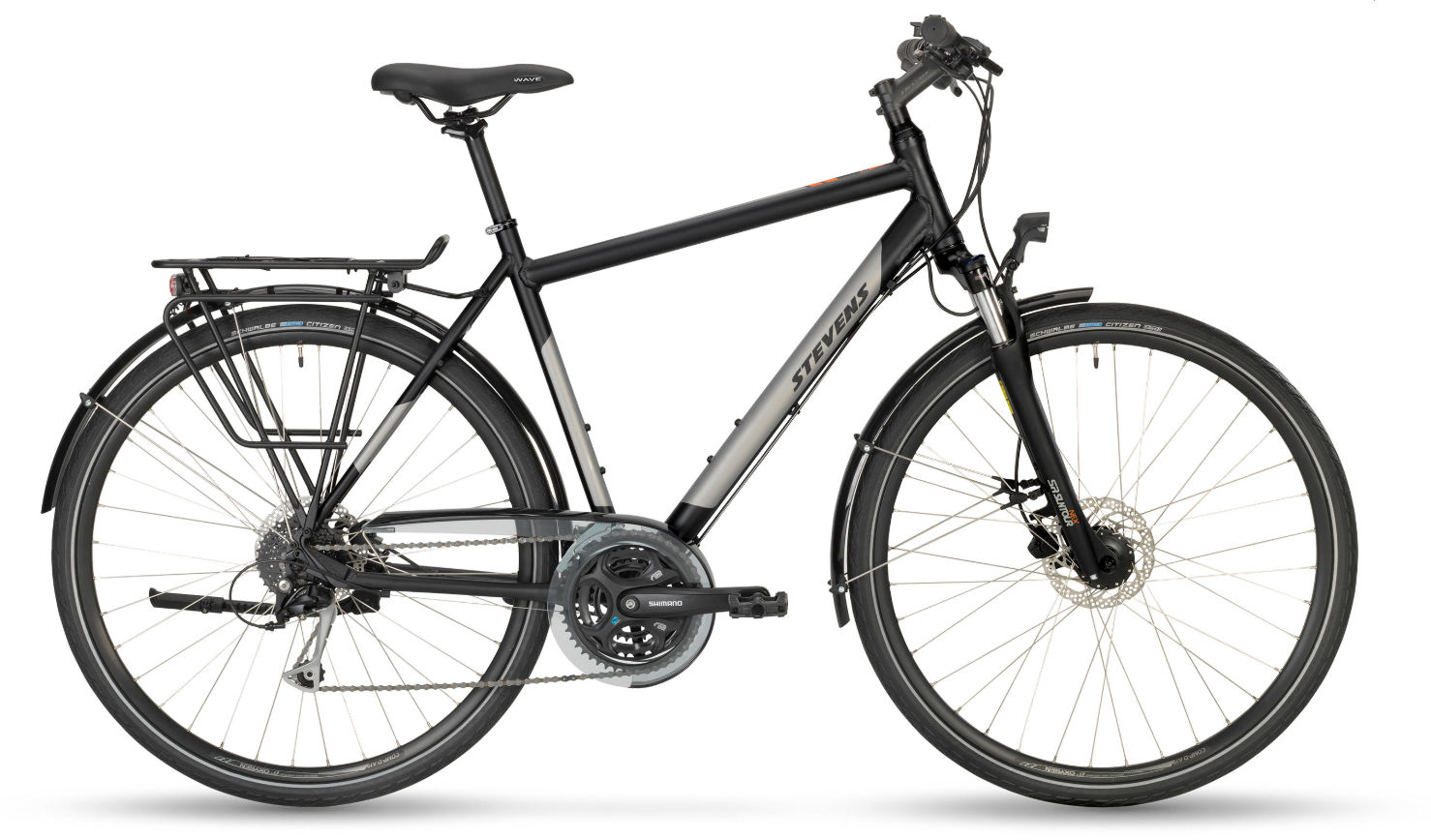

2019 Stevens Jazz geometry
Full frame geometry for the 2019 Stevens Jazz, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 585 | 385 | 73.5 | 69.5 | 115 | 558 | 480 | 738 | 65 | 627 | 450 | 1070 | 42 |
| 52 | 605 | 383 | 72.5 | 70 | 135 | 574 | 520 | 769 | 65 | 628 | 450 | 1070 | 42 |
| 55 | 619 | 394 | 72.5 | 70 | 150 | 589 | 550 | 790 | 65 | 643 | 450 | 1085 | 42 |
| 58 | 649 | 400 | 72.5 | 71 | 175 | 604 | 580 | 819 | 65 | 648 | 450 | 1090 | 42 |
| 61 | 673 | 404 | 72.5 | 71.5 | 200 | 616 | 610 | 846 | 65 | 655 | 450 | 1097 | 42 |
| 64 | 687 | 413 | 72.5 | 71.5 | 215 | 630 | 640 | 877 | 65 | 669 | 450 | 1111 | 42 |
All measurements in millimetres unless marked (°) for angles.
