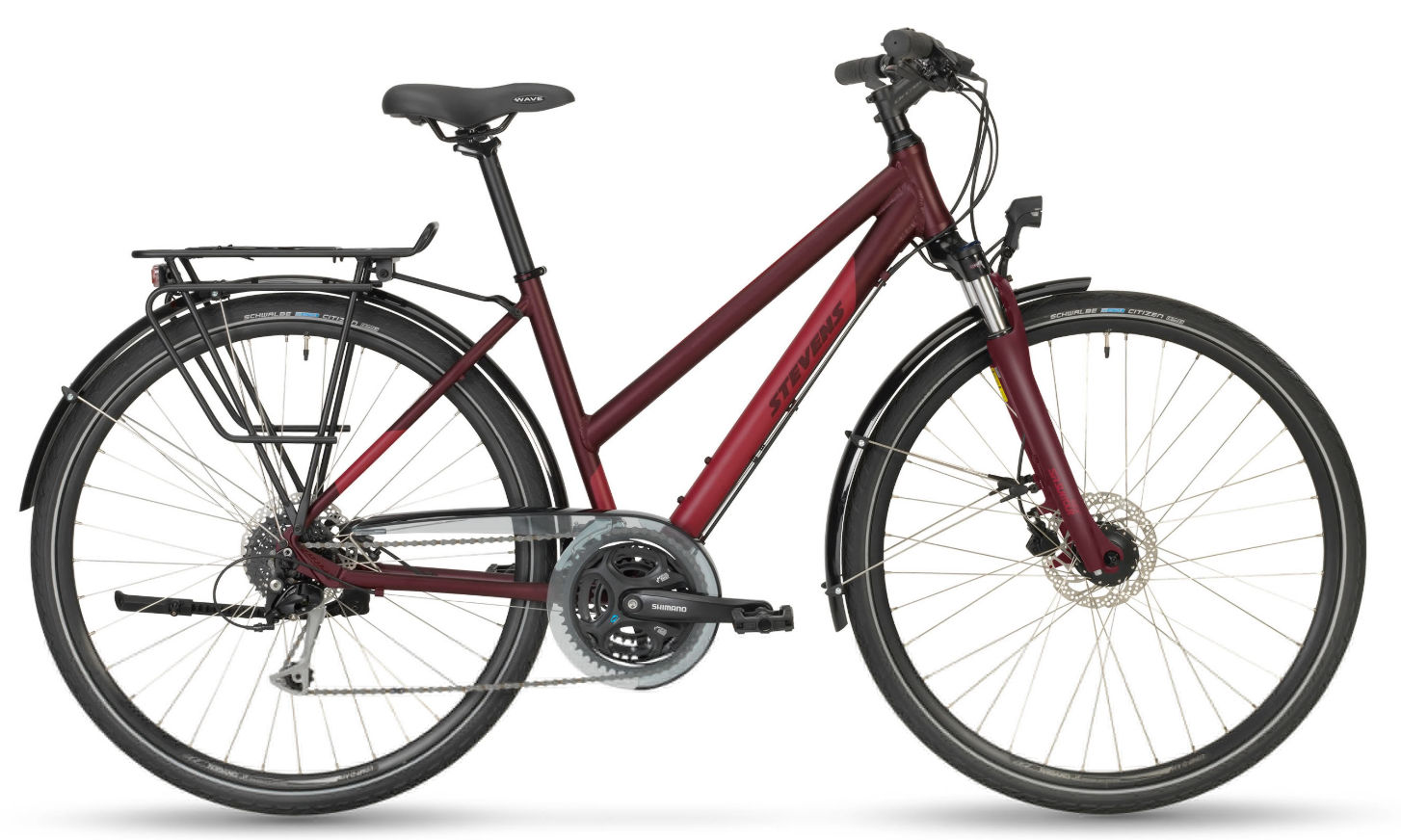

2019 Stevens Jazz Womens geometry
Full frame geometry for the 2019 Stevens Jazz Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 591 | 385 | 73 | 70 | 120 | 565 | 460 | 634 | 65 | 624 | 450 | 1066 | 42 |
| 50 | 624 | 386 | 73 | 70 | 155 | 577 | 500 | 642 | 65 | 638 | 450 | 1080 | 42 |
| 54 | 657 | 388 | 73 | 70 | 190 | 589 | 540 | 658 | 65 | 651 | 450 | 1093 | 42 |
| 58 | 675 | 405 | 73 | 71 | 205 | 611 | 580 | 655 | 65 | 662 | 450 | 1104 | 42 |
All measurements in millimetres unless marked (°) for angles.
