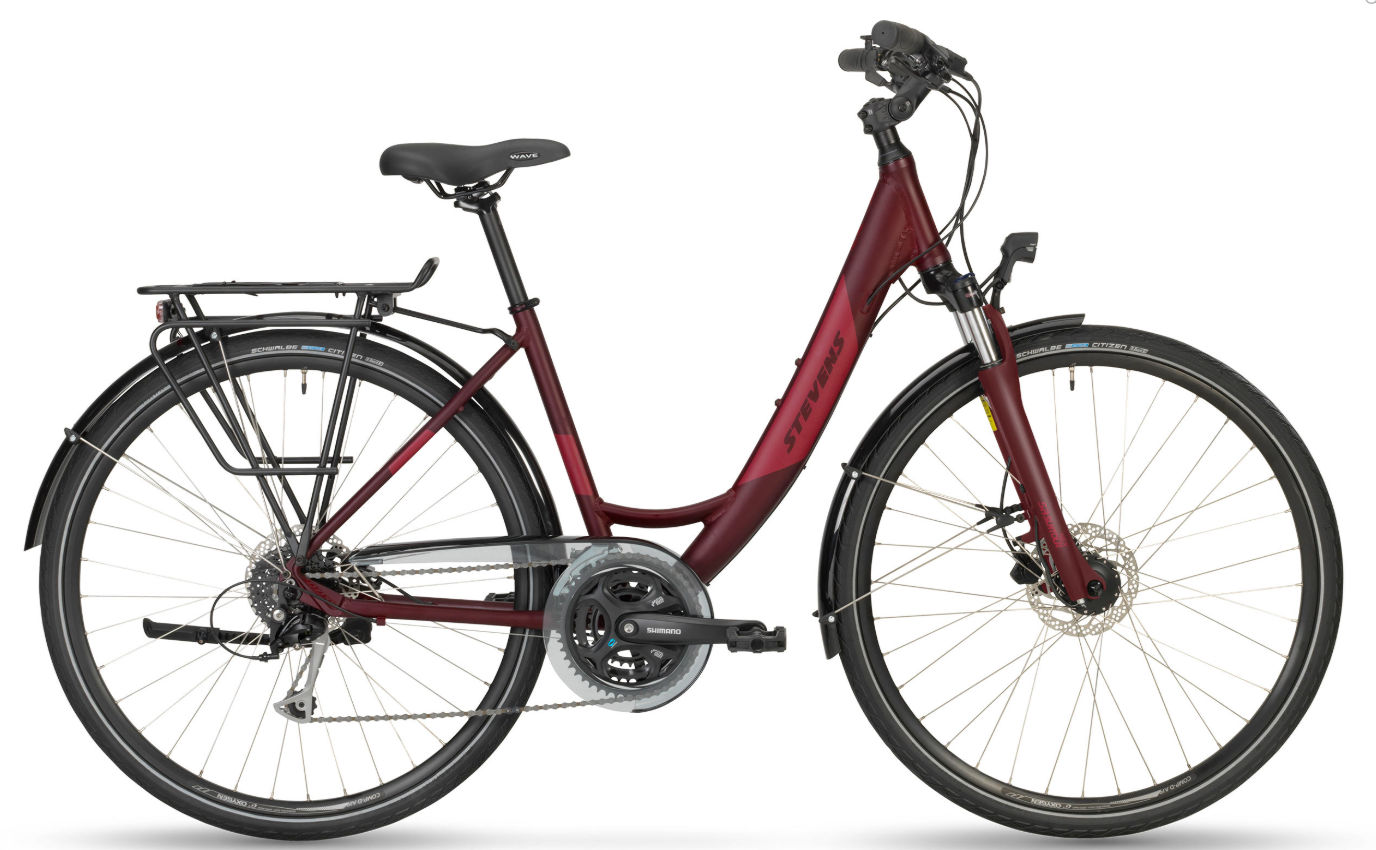

2019 Stevens Jazz Forma geometry
Full frame geometry for the 2019 Stevens Jazz Forma, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 615 | 380 | 73 | 69 | 150 | 568 | 460 | 451 | 65 | 639 | 450 | 1081 | 42 |
| 52 | 629 | 388 | 73 | 70 | 160 | 580 | 520 | 451 | 65 | 641 | 450 | 1083 | 42 |
| 56 | 657 | 387 | 73 | 70 | 190 | 587 | 560 | 451 | 65 | 650 | 450 | 1092 | 42 |
All measurements in millimetres unless marked (°) for angles.
