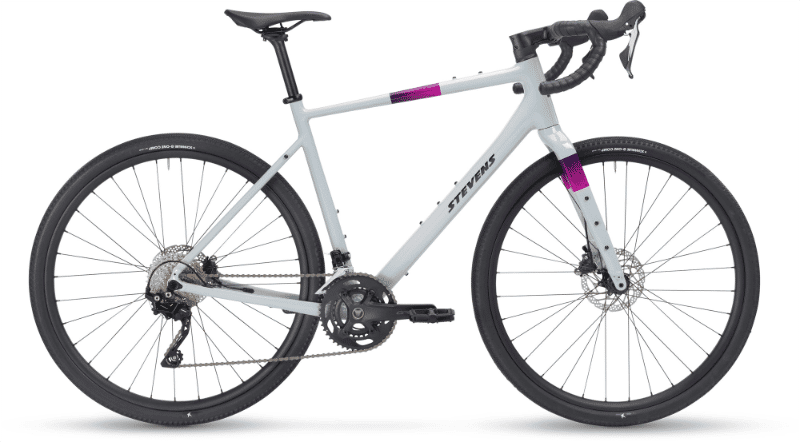

2026 Stevens Gavere Eco geometry
Full frame geometry for the 2026 Stevens Gavere Eco, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 553 | 378 | 76 | 70 | 115 | 516 | 450 | 742 | 70 | 606 | 440 | 1036 | 45 |
| 51 | 571 | 387 | 74 | 71 | 130 | 551 | 480 | 767 | 70 | 611 | 440 | 1042 | 45 |
| 54 | 592 | 395 | 73 | 71.5 | 150 | 576 | 510 | 792 | 70 | 621 | 440 | 1052 | 45 |
| 56 | 611 | 404 | 73 | 71.5 | 170 | 591 | 540 | 816 | 70 | 637 | 440 | 1067 | 45 |
| 58 | 632 | 413 | 73 | 72 | 190 | 606 | 570 | 842 | 70 | 647 | 440 | 1077 | 45 |
| 61 | 651 | 422 | 73 | 72 | 210 | 621 | 600 | 866 | 70 | 662 | 440 | 1093 | 45 |
All measurements in millimetres unless marked (°) for angles.
