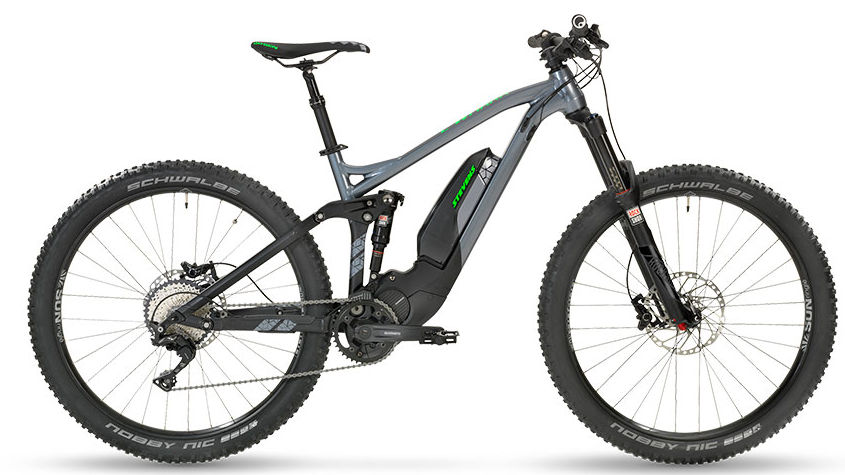

2017 Stevens E-Whaka+ geometry
Full frame geometry for the 2017 Stevens E-Whaka+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 604 | 427 | 76.9 | 66.5 | 95 | 568 | 400 | 719 | 19 | 716 | 436 | 1162 | 51 |
| 18 | 608 | 447 | 76.9 | 66.5 | 100 | 589 | 430 | 732 | 19 | 750 | 436 | 1183 | 51 |
| 20 | 617 | 467 | 76.9 | 66.5 | 110 | 608 | 460 | 744 | 19 | 773 | 436 | 1207 | 51 |
| 22 | 627 | 482 | 76.9 | 66.5 | 120 | 631 | 490 | 755 | 19 | 792 | 436 | 1226 | 51 |
All measurements in millimetres unless marked (°) for angles.
