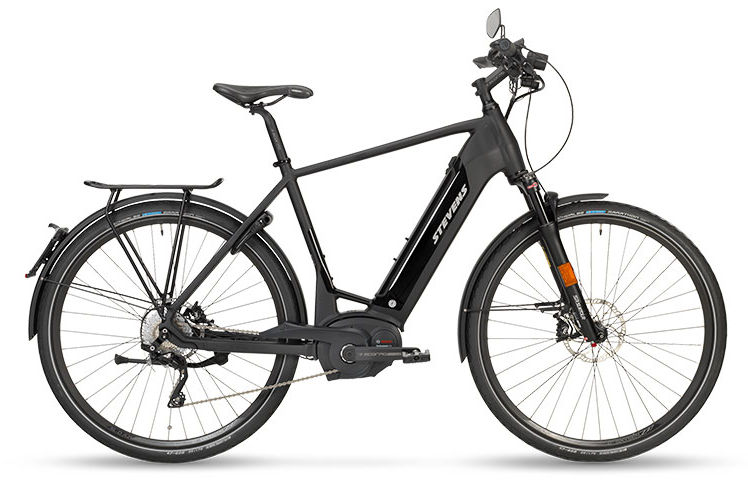

2019 Stevens E-Triton geometry
Full frame geometry for the 2019 Stevens E-Triton, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 638 | 388 | 72 | 70 | 170 | 597 | 520 | 824 | 65 | 646 | 496 | 1135 | 42 |
| 55 | 647 | 395 | 72 | 70 | 180 | 605 | 550 | 844 | 65 | 655 | 496 | 1143 | 42 |
| 58 | 661 | 400 | 72 | 71 | 190 | 615 | 580 | 867 | 65 | 653 | 496 | 1142 | 42 |
| 61 | 673 | 404 | 72 | 71.5 | 200 | 623 | 610 | 886 | 65 | 655 | 496 | 1144 | 42 |
All measurements in millimetres unless marked (°) for angles.
