2017 Stevens · EDB

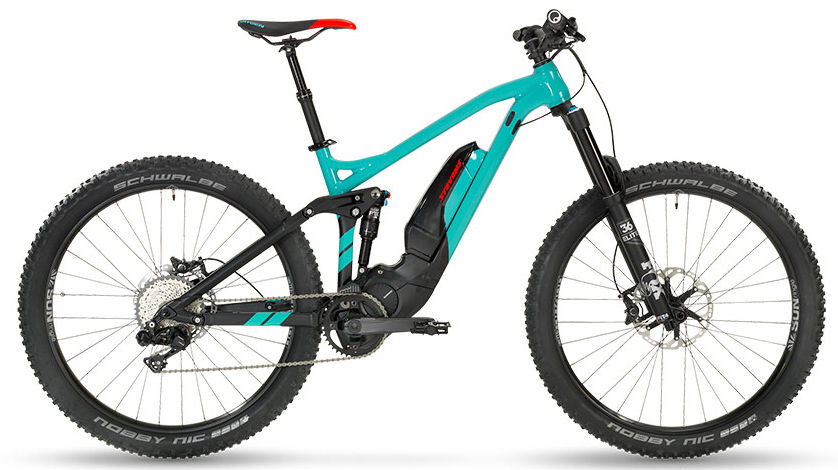

2017 Stevens E-Sledge+ geometry
Full frame geometry for the 2017 Stevens E-Sledge+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 613 | 415 | 75.6 | 65.5 | 95 | 573 | 400 | 726 | 19 | 739 | 436 | 1174 | 51 |
| 18 | 617 | 435 | 75.6 | 65.5 | 100 | 593 | 430 | 741 | 19 | 761 | 436 | 1196 | 51 |
| 20 | 626 | 455 | 75.6 | 65.5 | 110 | 616 | 460 | 751 | 19 | 785 | 436 | 1220 | 51 |
| 22 | 635 | 470 | 75.6 | 65.5 | 120 | 633 | 490 | 763 | 19 | 805 | 436 | 1239 | 51 |
All measurements in millimetres unless marked (°) for angles.
