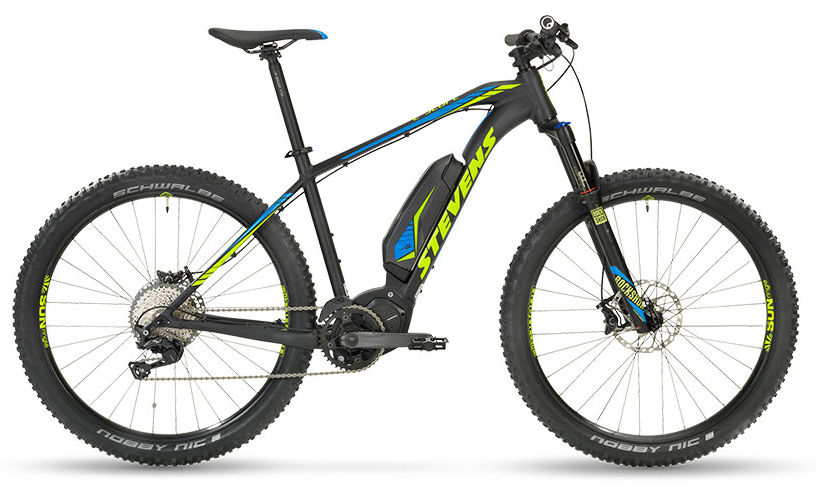

2017 Stevens E-Scope+ geometry
Full frame geometry for the 2017 Stevens E-Scope+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 612 | 399 | 74.5 | 68.5 | 110 | 569 | 406 | 745 | 55 | 670 | 435 | 1099 | 46 |
| 18 | 622 | 417 | 74.5 | 68.5 | 120 | 589 | 457 | 782 | 55 | 691 | 435 | 1126 | 46 |
| 20 | 631 | 434 | 74.5 | 68.5 | 130 | 609 | 508 | 819 | 55 | 712 | 435 | 1142 | 46 |
| 22 | 647 | 443 | 74 | 69 | 145 | 629 | 559 | 857 | 55 | 722 | 435 | 1152 | 46 |
All measurements in millimetres unless marked (°) for angles.
