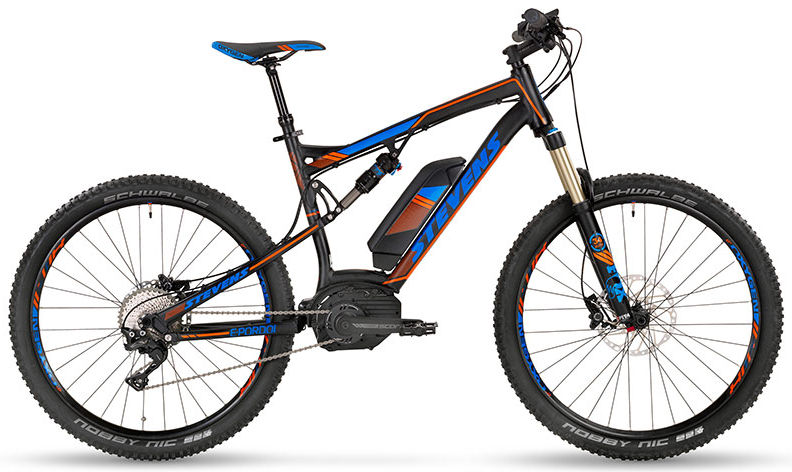

2015 Stevens E-Pordoi geometry
Full frame geometry for the 2015 Stevens E-Pordoi, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17 | 587 | 411 | 73.4 | 68.5 | 115 | 585 | 432 | 777 | 10 | 685 | 479 | 1164 | 44 |
| 19 | 615 | 427 | 73.5 | 68.5 | 145 | 610 | 483 | 787 | 10 | 713 | 479 | 1192 | 44 |
| 21 | 634 | 446 | 73.5 | 68.5 | 165 | 635 | 533 | 793 | 10 | 740 | 479 | 1219 | 44 |
All measurements in millimetres unless marked (°) for angles.
