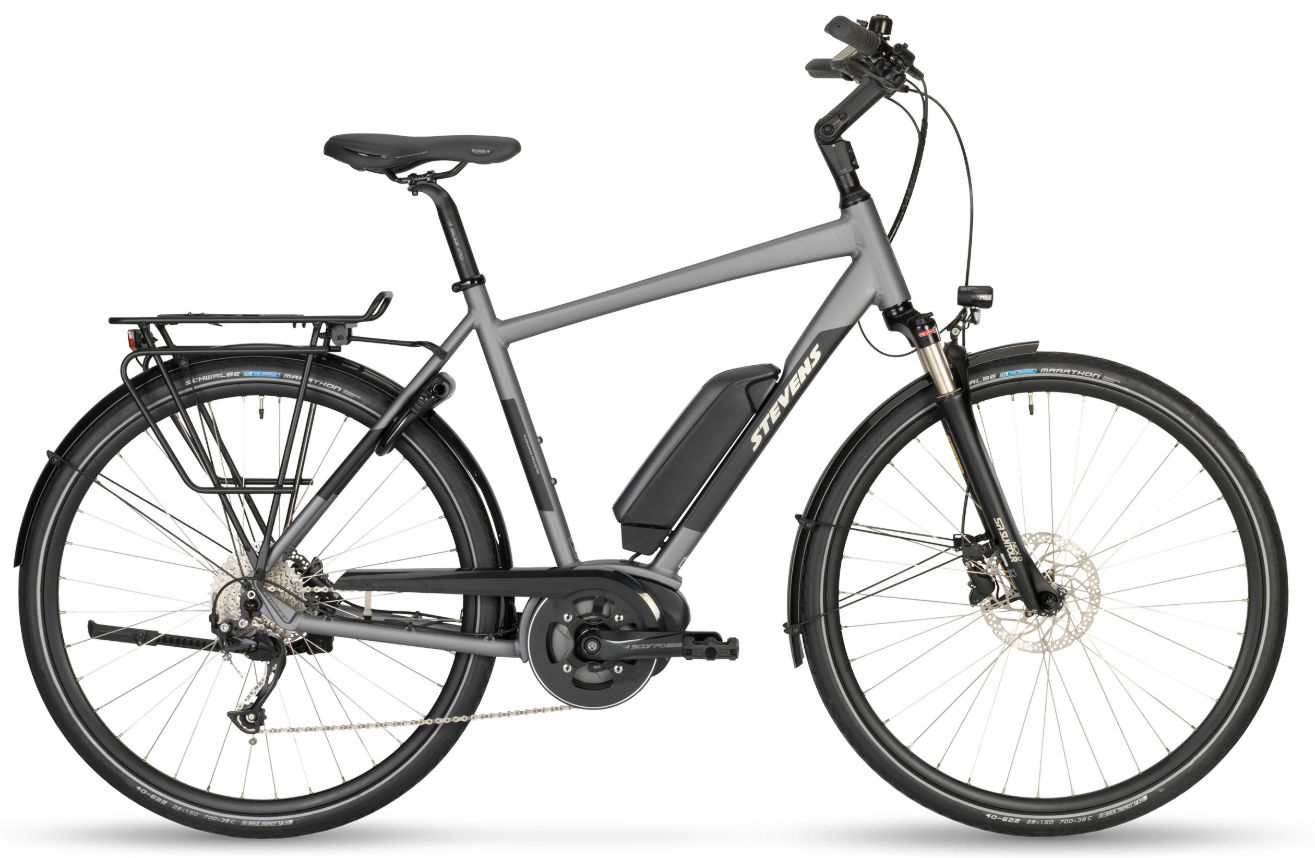

2019 Stevens E-Molveno geometry
Full frame geometry for the 2019 Stevens E-Molveno, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 577 | 384 | 73 | 69 | 135 | 560 | 480 | 740 | 65 | 629 | 492 | 1113 | 42 |
| 52 | 605 | 384 | 72.5 | 70 | 135 | 575 | 520 | 770 | 65 | 629 | 492 | 1113 | 42 |
| 55 | 624 | 393 | 72.5 | 70 | 155 | 590 | 550 | 804 | 65 | 645 | 492 | 1129 | 42 |
| 58 | 647 | 400 | 72.5 | 71 | 175 | 604 | 580 | 823 | 65 | 648 | 492 | 1133 | 42 |
| 61 | 668 | 405 | 72.5 | 71.5 | 195 | 617 | 610 | 848 | 65 | 655 | 492 | 1139 | 42 |
All measurements in millimetres unless marked (°) for angles.
