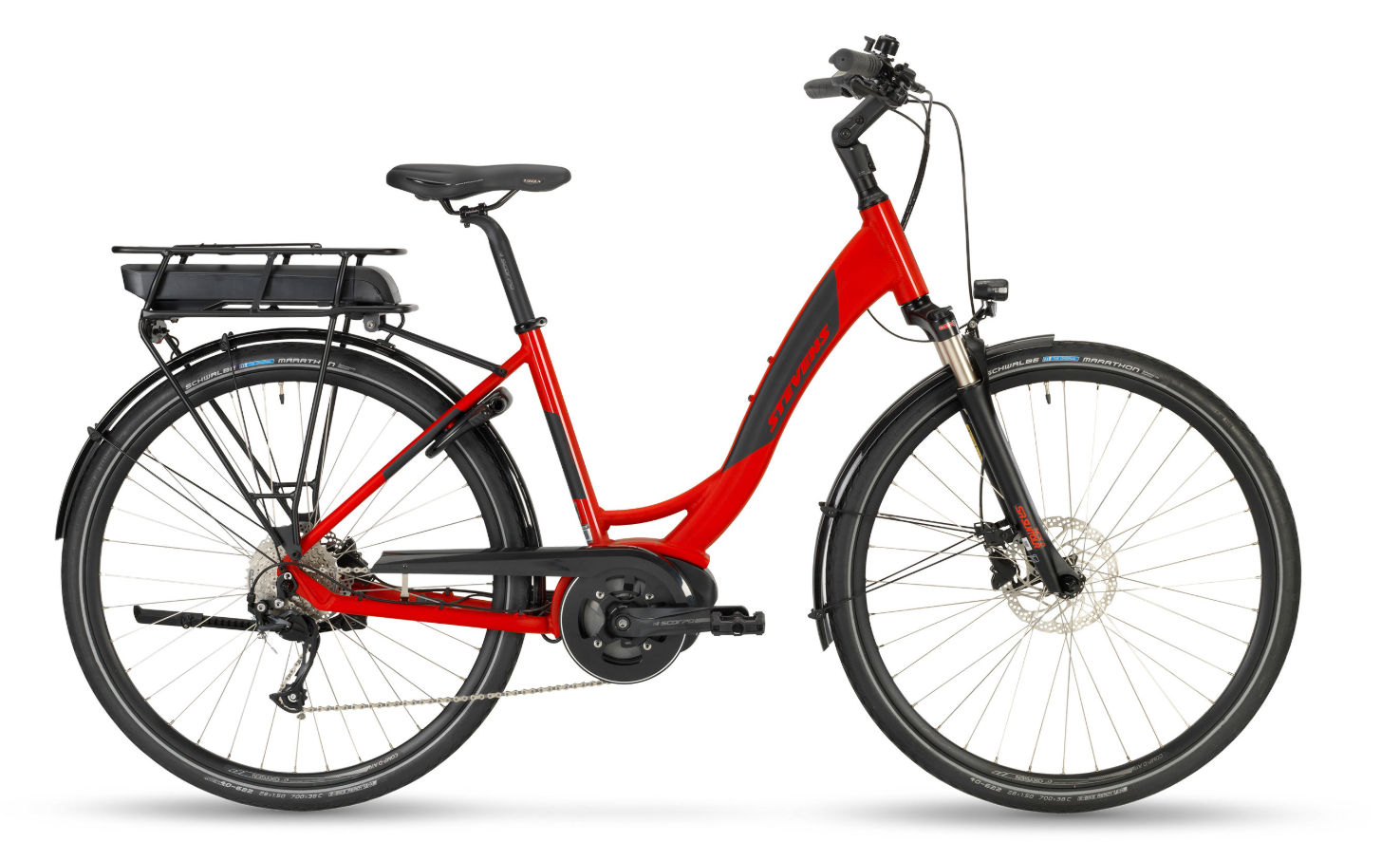

2019 Stevens E-Molveno Forma geometry
Full frame geometry for the 2019 Stevens E-Molveno Forma, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 608 | 379 | 73 | 67.5 | 150 | 565 | 460 | 440 | 65 | 653 | 498 | 1143 | 42 |
| 52 | 617 | 389 | 73 | 67.5 | 160 | 578 | 520 | 440 | 65 | 667 | 498 | 1157 | 42 |
| 56 | 645 | 390 | 73 | 67.5 | 190 | 587 | 560 | 440 | 65 | 679 | 498 | 1169 | 42 |
All measurements in millimetres unless marked (°) for angles.
