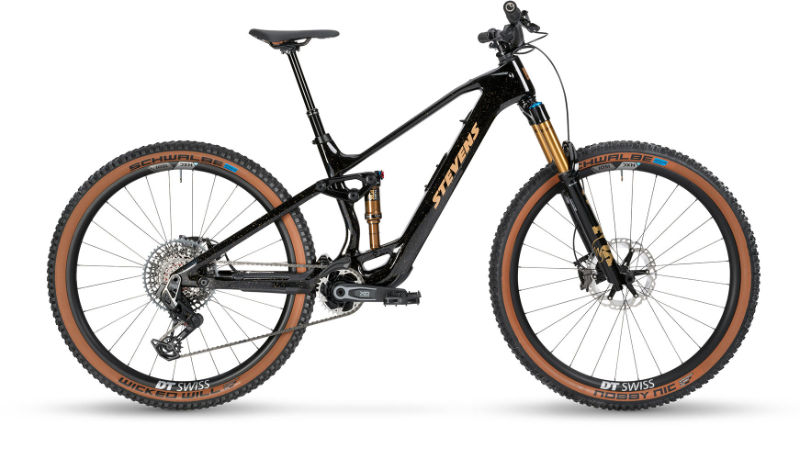

2026 Stevens E-Maverick AM geometry
Full frame geometry for the 2026 Stevens E-Maverick AM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1 | 608 | 439 | 77.4 | 65.4 | 95 | 564 | 385 | 1078 | 36 | 749 | 440 | 1187 | 44 |
| R2 | 622 | 460 | 77.2 | 65.4 | 110 | 588 | 425 | 1079 | 36 | 777 | 440 | 1214 | 44 |
| R3 | 631 | 480 | 76.9 | 65.4 | 120 | 613 | 440 | 1082 | 36 | 802 | 444 | 1244 | 44 |
| R4 | 643 | 505 | 76.9 | 65.9 | 130 | 639 | 455 | 1090 | 36 | 825 | 444 | 1267 | 44 |
| R5 | 652 | 527 | 76.7 | 65.9 | 140 | 665 | 475 | 1101 | 36 | 851 | 444 | 1293 | 44 |
All measurements in millimetres unless marked (°) for angles.
