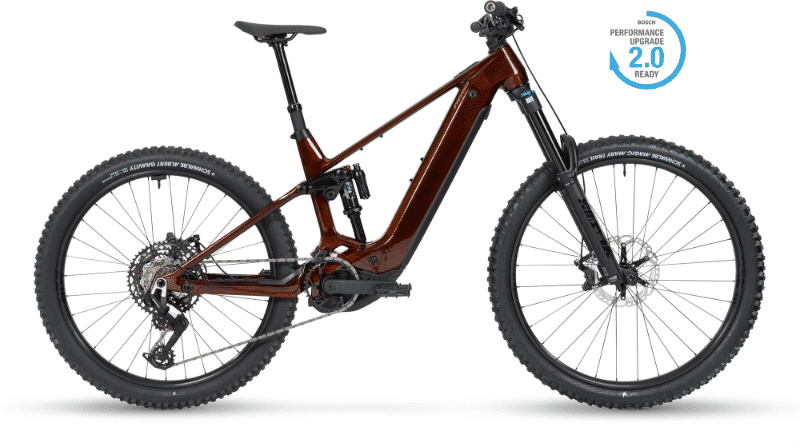

2026 Stevens E-Inception ED geometry
Full frame geometry for the 2026 Stevens E-Inception ED, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1 | 622 | 435 | 77.1 | 63.6 | 100 | 576 | 385 | 761 | 12 | 781 | 447 | 1228 | 44 |
| R2 | 631 | 450 | 77.1 | 63.6 | 110 | 592 | 419 | 754 | 12 | 801 | 447 | 1247 | 44 |
| R3 | 640 | 471 | 76.8 | 63.6 | 120 | 616 | 435 | 764 | 12 | 825 | 447 | 1272 | 44 |
| R4 | 649 | 491 | 76.8 | 63.6 | 130 | 638 | 455 | 775 | 12 | 850 | 447 | 1296 | 44 |
| R5 | 669 | 515 | 76.8 | 64.6 | 145 | 667 | 475 | 780 | 12 | 870 | 447 | 1316 | 44 |
All measurements in millimetres unless marked (°) for angles.
