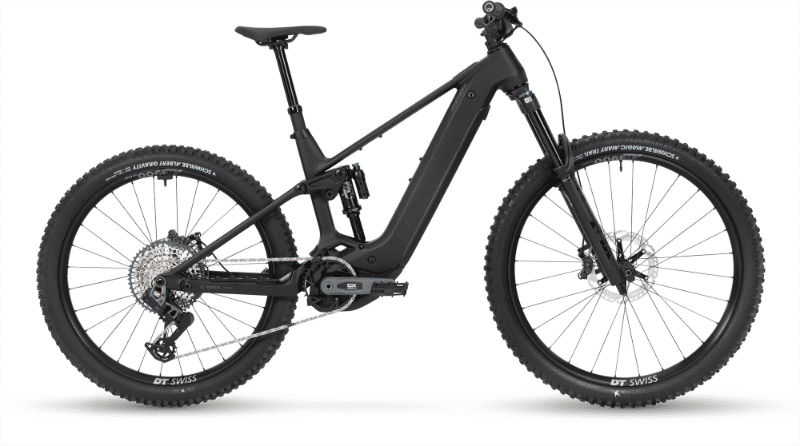

2026 Stevens E-Inception AM geometry
Full frame geometry for the 2026 Stevens E-Inception AM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1 | 619 | 440 | 77.5 | 64 | 100 | 575 | 385 | 755 | 15 | 778 | 447 | 1224 | 44 |
| R2 | 628 | 455 | 77.5 | 64 | 110 | 590 | 419 | 748 | 15 | 797 | 447 | 1243 | 44 |
| R3 | 637 | 475 | 77.2 | 64 | 120 | 615 | 435 | 759 | 15 | 821 | 447 | 1268 | 44 |
| R4 | 646 | 495 | 77.2 | 64 | 130 | 637 | 455 | 770 | 15 | 846 | 447 | 1292 | 44 |
| R5 | 665 | 520 | 77.2 | 65 | 145 | 666 | 475 | 775 | 15 | 866 | 447 | 1313 | 44 |
All measurements in millimetres unless marked (°) for angles.
