2026 Stevens · EG

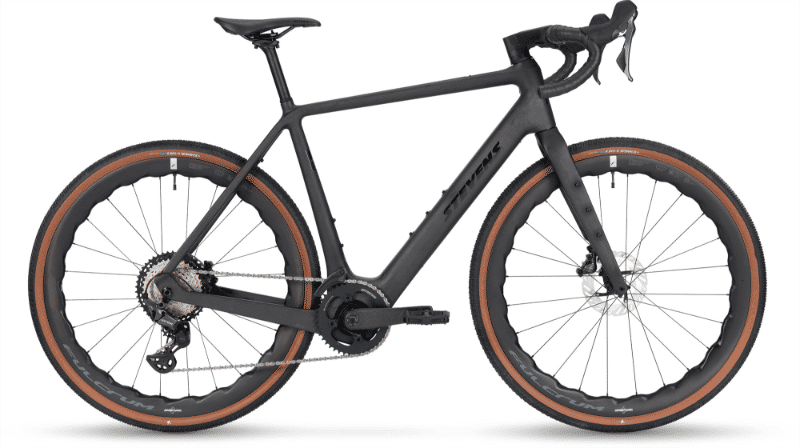

2026 Stevens E-Getaway 9.4.3 geometry
Full frame geometry for the 2026 Stevens E-Getaway 9.4.3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 567 | 388.4 | 74 | 71 | 130 | 551 | 480 | 756 | 70 | 611.1 | 440 | 1041 | 45 |
| 53 | 587.5 | 396.3 | 73 | 71.5 | 150 | 576 | 510 | 809 | 70 | 621 | 440 | 1051.4 | 45 |
| 56 | 607 | 405.4 | 73 | 71.5 | 170 | 591 | 540 | 834 | 70 | 636.4 | 440 | 1066.8 | 45 |
| 59 | 627.6 | 414 | 73 | 72 | 190 | 606 | 570 | 859 | 70 | 646.4 | 440 | 1077 | 45 |
All measurements in millimetres unless marked (°) for angles.
