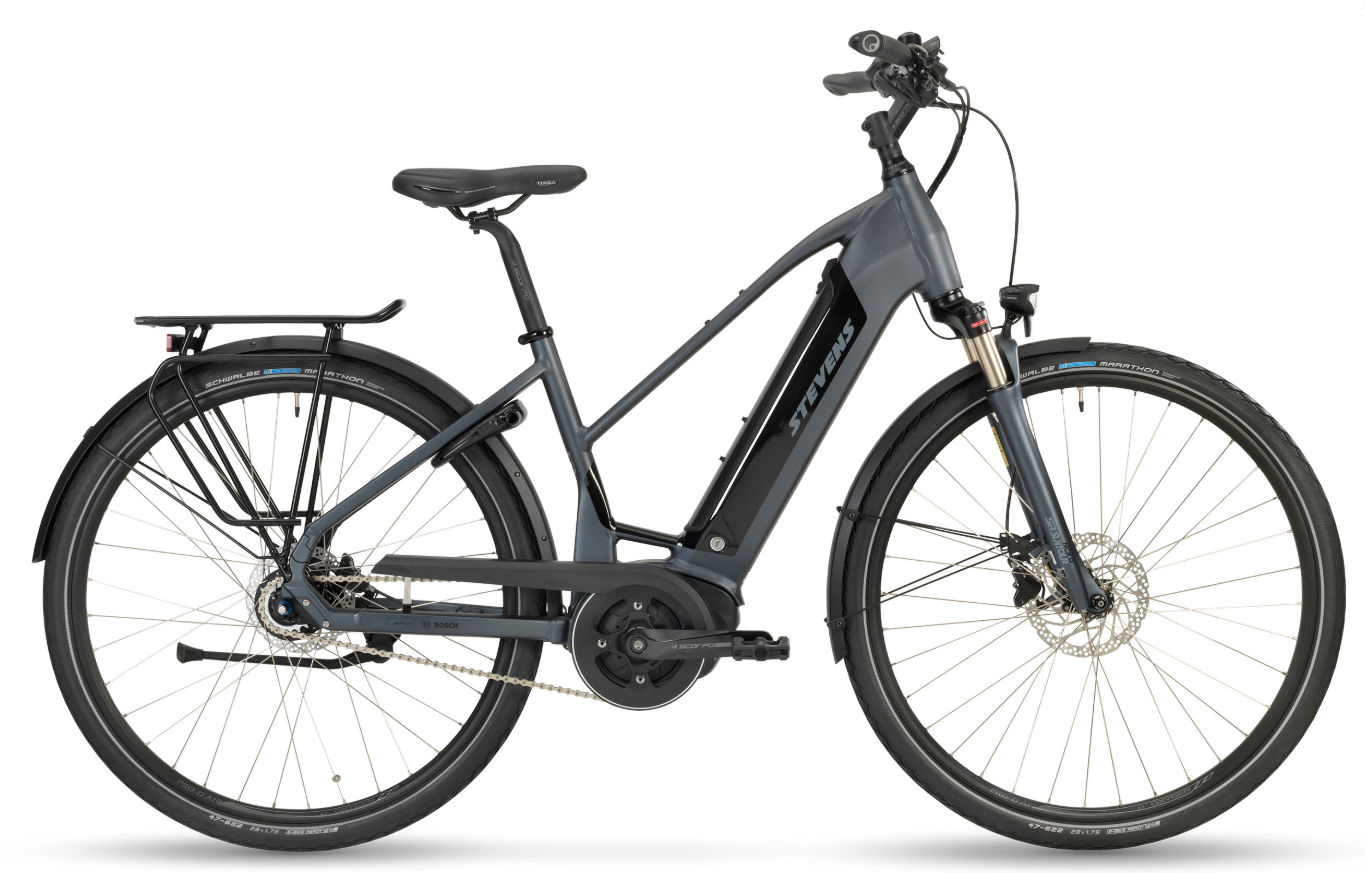

2019 Stevens E-Courier Womens geometry
Full frame geometry for the 2019 Stevens E-Courier Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 643 | 380 | 73 | 70 | 175 | 573 | 460 | 703 | 65 | 635 | 490 | 1117 | 42 |
| 50 | 643 | 384 | 73 | 70 | 175 | 580 | 500 | 703 | 65 | 642 | 490 | 1124 | 42 |
| 54 | 647 | 392 | 73 | 70 | 180 | 590 | 540 | 703 | 65 | 652 | 490 | 1134 | 42 |
| 58 | 657 | 401 | 73 | 70 | 190 | 602 | 580 | 707 | 65 | 665 | 490 | 1147 | 42 |
All measurements in millimetres unless marked (°) for angles.
