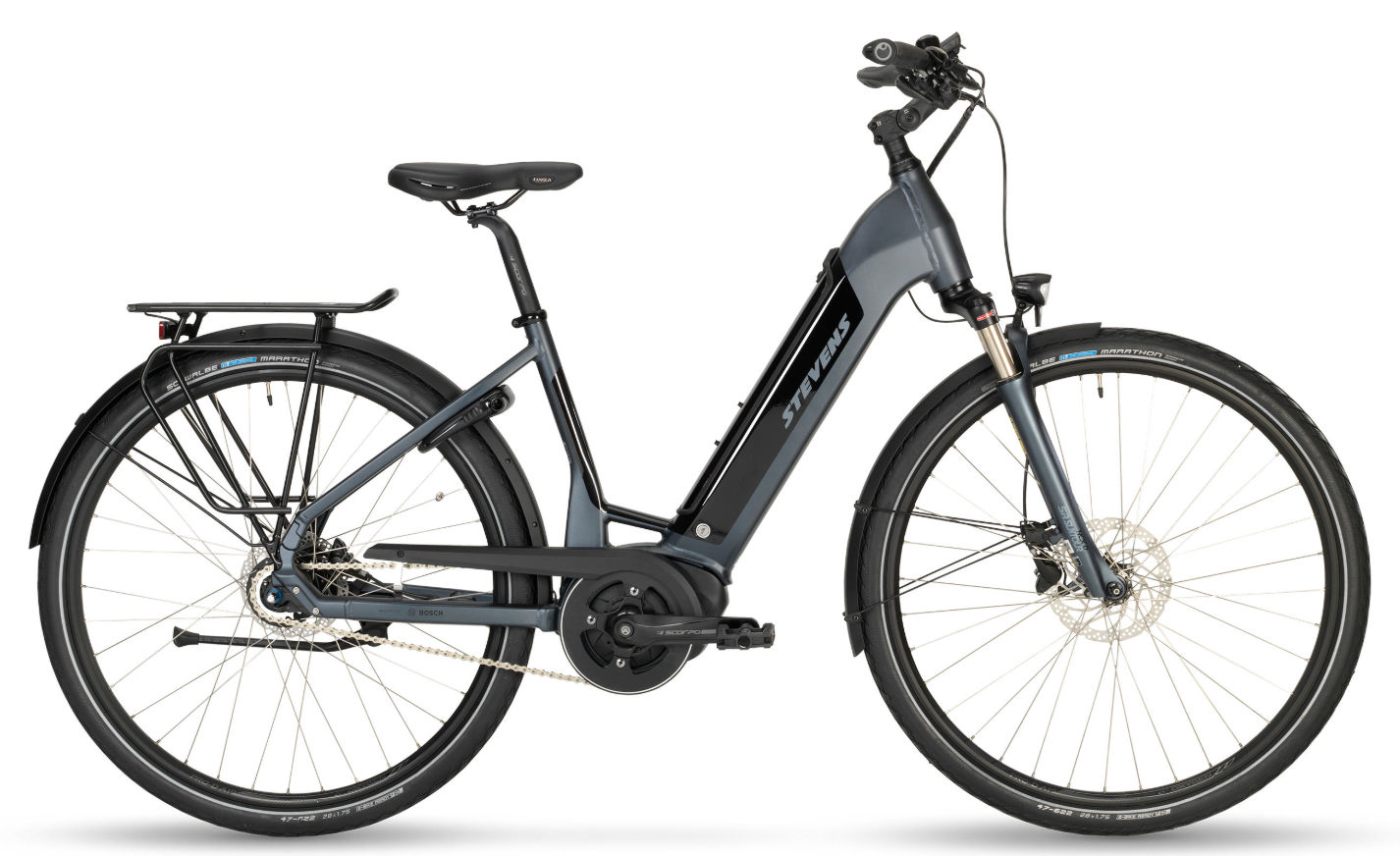

2019 Stevens E-Courier Forma geometry
Full frame geometry for the 2019 Stevens E-Courier Forma, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 629 | 398 | 74.5 | 68 | 170 | 572 | 460 | 462 | 65 | 674 | 490 | 1156 | 42 |
| 52 | 629 | 403 | 74.5 | 68 | 170 | 578 | 520 | 462 | 65 | 680 | 490 | 1162 | 42 |
| 56 | 652 | 408 | 74.5 | 69 | 190 | 589 | 560 | 462 | 65 | 682 | 490 | 1164 | 42 |
All measurements in millimetres unless marked (°) for angles.
