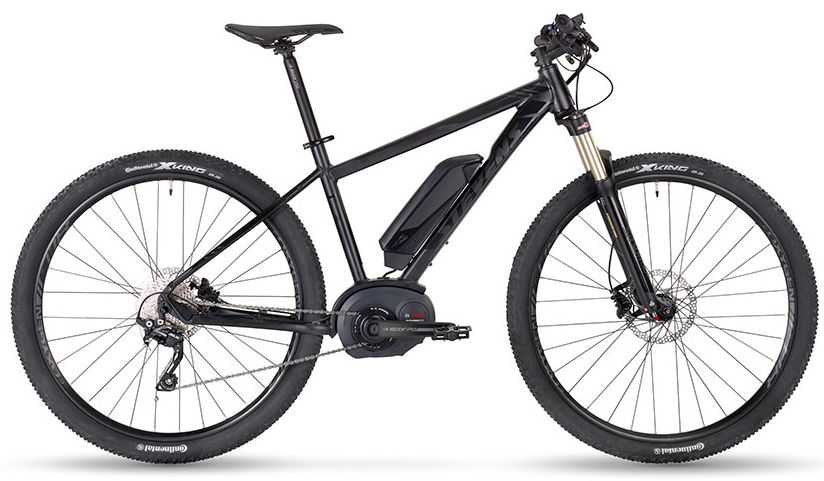

2015 Stevens E-Cayolle geometry
Full frame geometry for the 2015 Stevens E-Cayolle, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 571 | 439 | 74.5 | 69 | 100 | 596 | 406 | 728 | 50 | 684 | 466 | 1146 | 46 |
| 18 | 598 | 423 | 74 | 70 | 100 | 594 | 457 | 757 | 55 | 671 | 486 | 1151 | 46 |
| 20 | 608 | 440 | 74 | 70 | 110 | 614 | 508 | 798 | 55 | 691 | 486 | 1172 | 46 |
| 22 | 622 | 456 | 74 | 70 | 125 | 634 | 558 | 836 | 55 | 712 | 486 | 1193 | 46 |
All measurements in millimetres unless marked (°) for angles.
