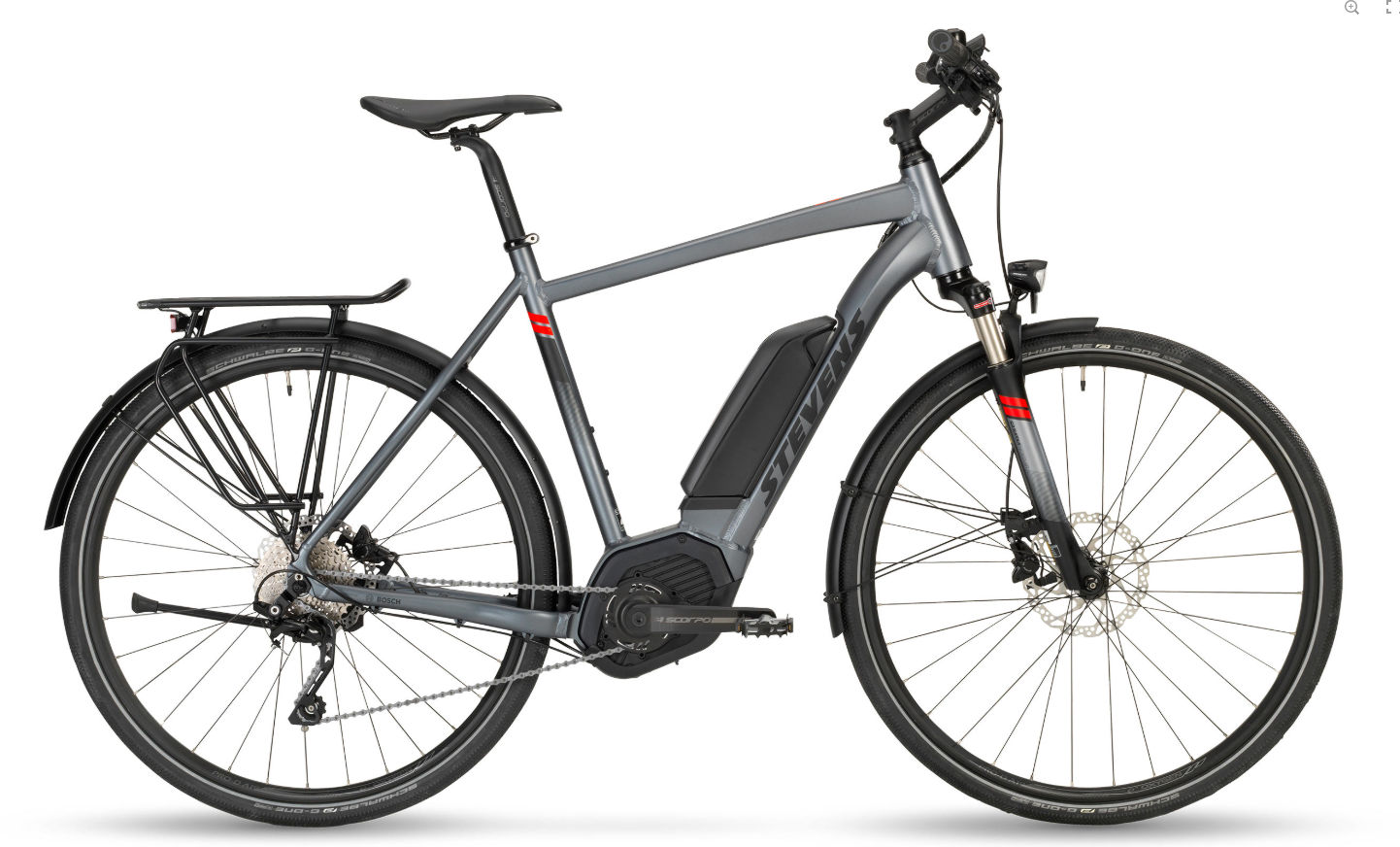

2019 Stevens E-6X Tour geometry
Full frame geometry for the 2019 Stevens E-6X Tour, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 569 | 387 | 72.5 | 70.5 | 105 | 567 | 480 | 750 | 55 | 616 | 476 | 1086 | 42 |
| 52 | 599 | 387 | 72.5 | 71 | 135 | 577 | 520 | 786 | 55 | 621 | 476 | 1092 | 42 |
| 55 | 620 | 396 | 72.5 | 71.5 | 155 | 592 | 550 | 811 | 55 | 632 | 476 | 1102 | 42 |
| 58 | 646 | 404 | 72.5 | 72 | 180 | 608 | 580 | 840 | 55 | 643 | 476 | 1113 | 42 |
| 61 | 665 | 405 | 72.5 | 72 | 200 | 615 | 610 | 866 | 55 | 650 | 476 | 1120 | 42 |
All measurements in millimetres unless marked (°) for angles.
