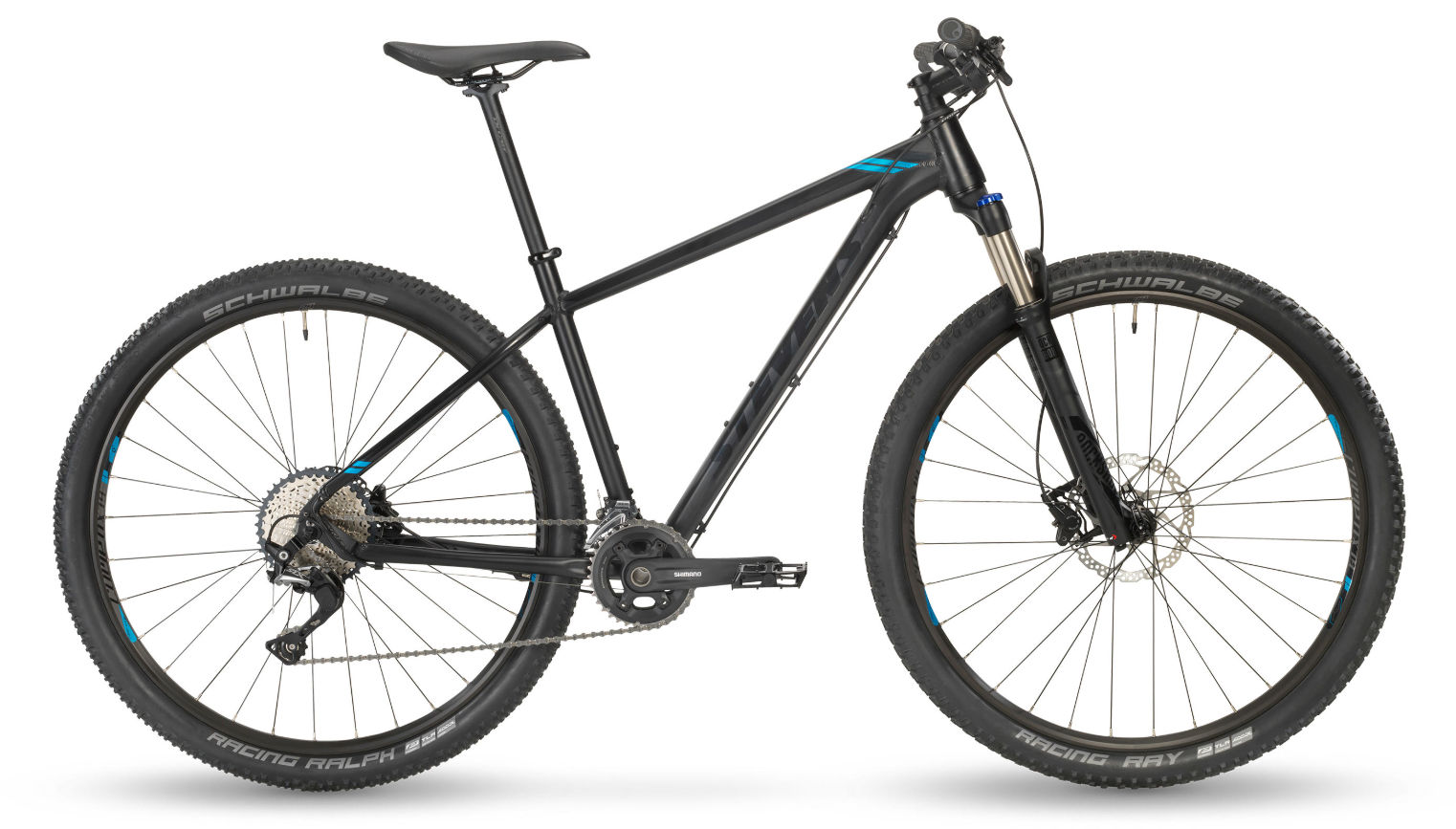

2019 Stevens Devils Trail MK II geometry
Full frame geometry for the 2019 Stevens Devils Trail MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 563 | 410 | 74.5 | 69 | 95 | 565 | 406 | 721 | 50 | 435 | 1083 | 42 |
| 18 | 608 | 414 | 73.5 | 70 | 100 | 595 | 457 | 763 | 70 | 450 | 1104 | 46 |
| 20 | 617 | 431 | 73.5 | 70 | 110 | 615 | 508 | 789 | 70 | 450 | 1124 | 46 |
| 22 | 632 | 450 | 73.5 | 70 | 125 | 635 | 558 | 828 | 70 | 450 | 1146 | 46 |
| 24 | 650 | 447 | 73.5 | 70 | 145 | 640 | 609 | 878 | 70 | 450 | 1152 | 46 |
All measurements in millimetres unless marked (°) for angles.
