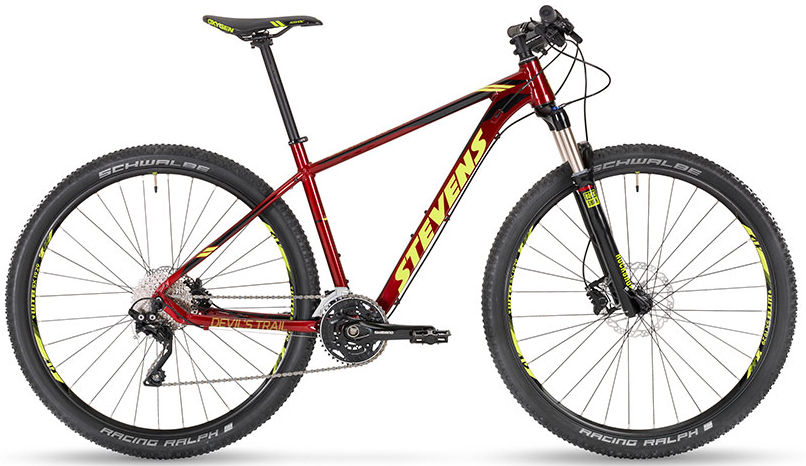

2015 Stevens Devils Trail 29 geometry
Full frame geometry for the 2015 Stevens Devils Trail 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 | 608 | 419 | 74 | 70 | 100 | 595 | 457 | 763 | 70 | 667 | 450 | 1108 | 46 |
| 20 | 617 | 431 | 74 | 70 | 110 | 610 | 508 | 798 | 70 | 683 | 450 | 1124 | 46 |
| 22 | 631 | 442 | 74 | 70 | 125 | 625 | 558 | 834 | 70 | 699 | 450 | 1140 | 46 |
All measurements in millimetres unless marked (°) for angles.
