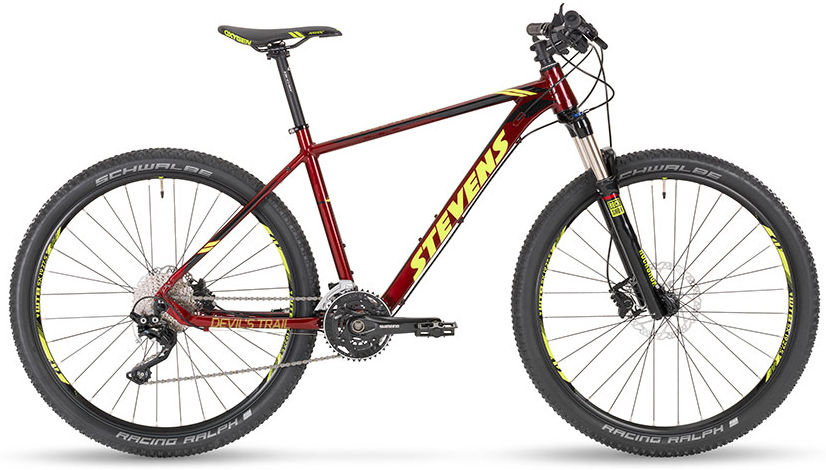

2015 Stevens Devils Trail 275 geometry
Full frame geometry for the 2015 Stevens Devils Trail 275, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 | 562 | 446 | 74.5 | 69 | 95 | 605 | 457 | 751 | 50 | 690 | 435 | 1120 | 42 |
| 16 | 563 | 437 | 74.5 | 69 | 95 | 595 | 406 | 719 | 50 | 680 | 435 | 1110 | 42 |
| 20 | 576 | 462 | 74.5 | 69 | 110 | 625 | 508 | 788 | 50 | 711 | 435 | 1141 | 42 |
All measurements in millimetres unless marked (°) for angles.
