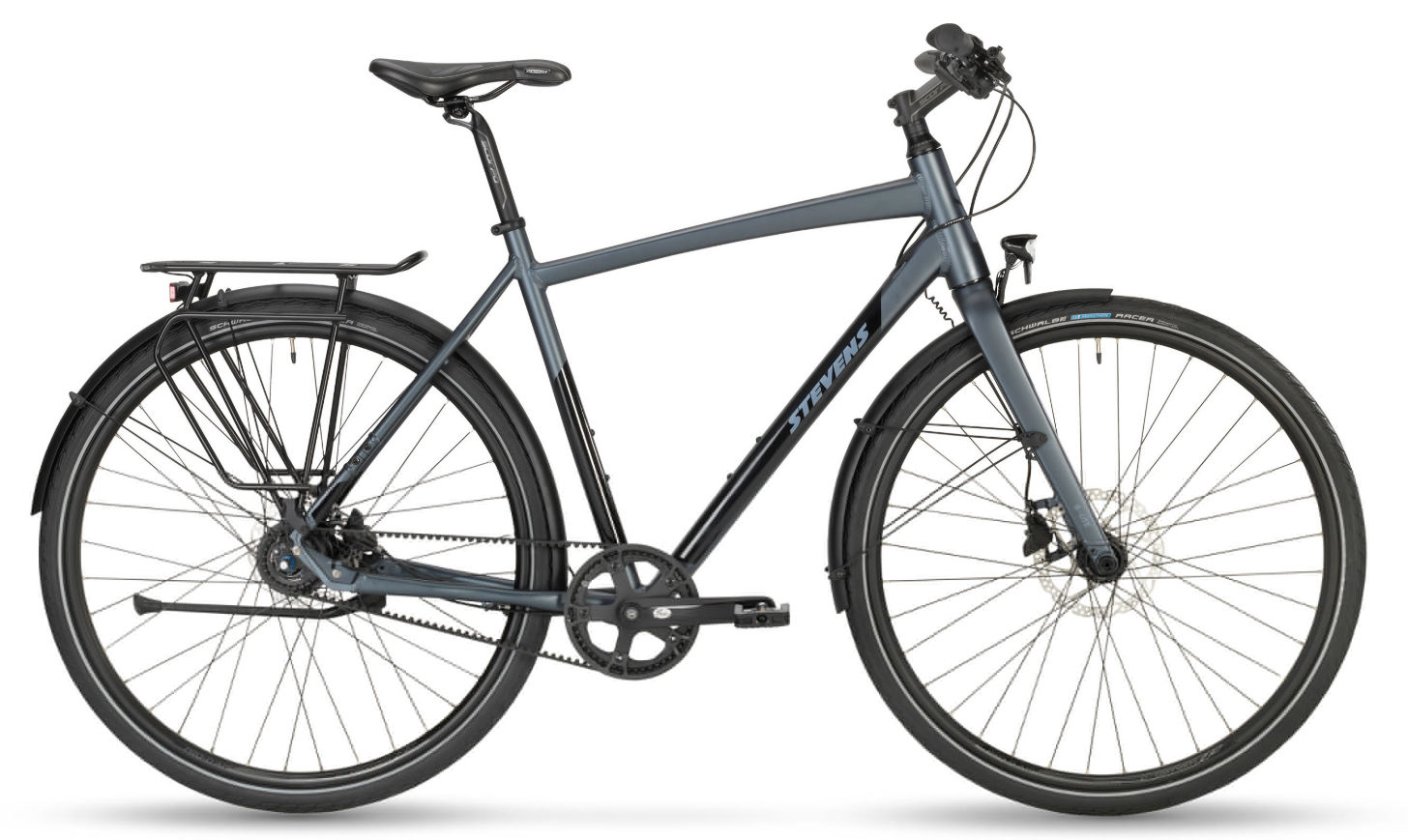

2019 Stevens Courier Luxe geometry
Full frame geometry for the 2019 Stevens Courier Luxe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 627 | 392 | 73.5 | 69.5 | 130 | 560 | 480 | 723 | 70 | 627 | 457 | 1080 | 45 |
| 52 | 628 | 387 | 72.5 | 70 | 160 | 575 | 520 | 758 | 70 | 628 | 457 | 1081 | 45 |
| 55 | 644 | 396 | 72.5 | 70 | 180 | 590 | 550 | 781 | 70 | 644 | 457 | 1088 | 45 |
| 58 | 649 | 404 | 72.5 | 71 | 200 | 604 | 580 | 808 | 70 | 649 | 457 | 1102 | 45 |
| 61 | 657 | 410 | 72.5 | 71.5 | 220 | 617 | 610 | 834 | 70 | 657 | 457 | 1110 | 45 |
| 64 | 671 | 421 | 72.5 | 71.5 | 230 | 630 | 640 | 857 | 70 | 671 | 457 | 1118 | 45 |
All measurements in millimetres unless marked (°) for angles.
